Modeling of Terraforce Retaining wall

12 ANTWORTEN 12
GELÖST
Antworten
Nachricht 1 von 13
shefypattambi
2813 Aufrufe, 12 Antworten

Modeling of Terraforce Retaining wall

Hi,

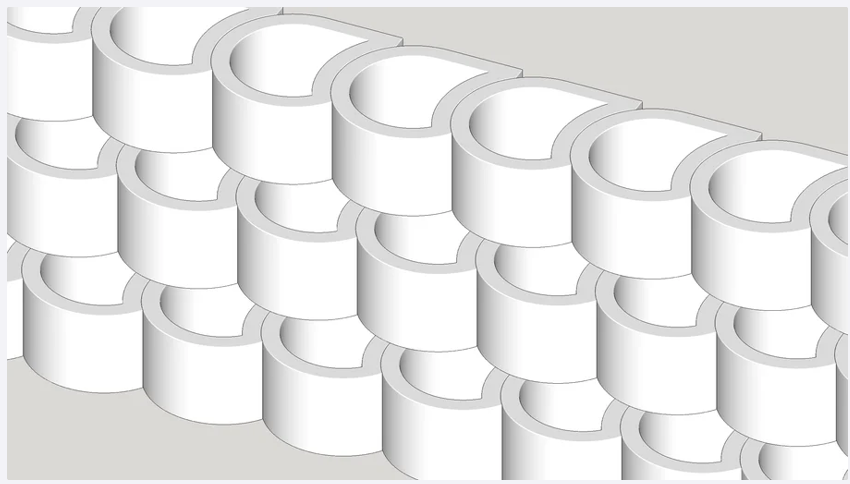

What is the best method to model this kind of retaining wall in Revit.






12 ANTWORTEN 12
Nachricht 2 von 13
Ilic.Andrej
als Antwort auf: shefypattambi

Two level based generic model, with two overlapped arrays of a nested array.



Andrej Ilić

phonetical: ændreɪ ilich
MSc Arch

Autodesk Expert Elite Alumni

Nachricht 3 von 13
Anonymous
als Antwort auf: shefypattambi

You might try a railing for this - create the blocks as balusters.

Nachricht 4 von 13
shefypattambi
als Antwort auf: Anonymous

Hi @Anonymous

I will try this. I hope I can control the number of blocks along with the height that can be controlled by the count parameter.

Nachricht 5 von 13
shefypattambi
als Antwort auf: Ilic.Andrej

Hi @Ilic.Andrej ,

Thanks for the tip. But I did not get the point "two overlapped arrays of a nested array". If you don't mind could you post a video for me? That will be highly appreciated.

Nachricht 6 von 13
bin
Advisor
als Antwort auf: shefypattambi

Built this family for you, basically the same to @Ilic.Andrej 's concept.




Nachricht 7 von 13
bin
Advisor
als Antwort auf: bin

Didn't see those dimensions.... I'll do another one...

Nachricht 8 von 13
bin
Advisor
als Antwort auf: bin


Here you go.



Nachricht 9 von 13
shefypattambi
als Antwort auf: bin

Hi @bin ,

Brilliant work...!!!! Have you used this kind of family in any of your projects?

Nachricht 10 von 13
bin
Advisor
als Antwort auf: shefypattambi

Nope, did it for you. :leicht_lächelndes_Gesicht:

Nachricht 11 von 13
david
als Antwort auf: bin

just used this in my project - thanks!
Nachricht 12 von 13
bradleyMBDW8
als Antwort auf: bin

Impressive

Nachricht 13 von 13
cuteacse
als Antwort auf: Ilic.Andrej

hi buddie. how do i put rivets in revit? i have tried to do it but with no success.
