Model Text on Curved Wall

3 ANTWORTEN 3
Antworten
Nachricht 1 von 4
BigPicture045
516 Aufrufe, 3 Antworten

Model Text on Curved Wall

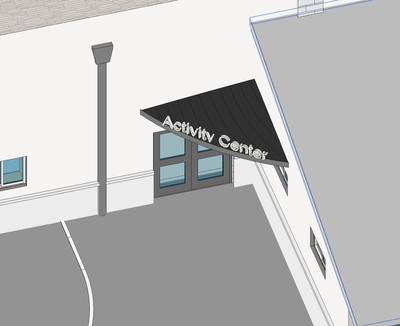

I need this signage to be curved along this roof face. I am trying to get the text to host to a curved wall to achieve this - as stated in this thread from 2016:



Solved: Placing Model Text on Curved Walls - Autodesk Community - Revit Products



I am not getting the same results, was this feature removed?




Does anyone have a family for this? All other solutions appear quite complex.



I

3 ANTWORTEN 3
Nachricht 2 von 4
ToanDN
als Antwort auf: BigPicture045

If you only have a few letters then create a letter as a face based family with an instance parameter to change the letter content, load in the project and host on the curved surface one by one.



If you have a lot, then create parametric family for a letter, nest in a adaptive family's divided line nods and associate the parameter so you can change the content for each letter.

Nachricht 3 von 4
BigPicture045
als Antwort auf: ToanDN

Not following this part:



" nest in a adaptive family's divided line nods"

Nachricht 4 von 4
barthbradley
als Antwort auf: BigPicture045

Use a Radial Array to array a single letter then edit each letter and change it to the right letter.





RADIAL TEXT.png
