Missing logo and lines of title block family when loading to a project

18 ANTWORTEN 18
Antworten
Nachricht 1 von 19
Shamseera.kk73D7Q
978 Aufrufe, 18 Antworten

Missing logo and lines of title block family when loading to a project

Hi...

I created a title block in Revit. but when I am loading it into any project, items are missing (horizontal line, company logo, etc.) Please see the attached image files. Where am I going wrong? I have attached the title block family also

18 ANTWORTEN 18
Nachricht 2 von 19
syman2000
als Antwort auf: Shamseera.kk73D7Q

Solid fill in titleblock will always display as masking and hide the line. One way to get around this is to insert solid fill image.






Check out my Revit youtube channel - https://www.youtube.com/user/scourdx
Nachricht 3 von 19
ToanDN
als Antwort auf: Shamseera.kk73D7Q

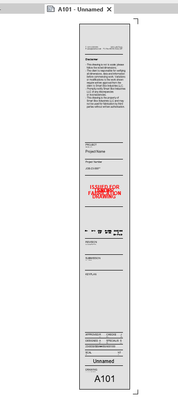

Try this.










Nachricht 4 von 19
Shamseera.kk73D7Q
als Antwort auf: ToanDN

I tried this. but still, the company logo is missing. also while converting it into a pdf I'm not getting it in full A3 sheet.

Nachricht 5 von 19
Shamseera.kk73D7Q
als Antwort auf: syman2000

Hi..

This image option worked. Thank you. But when Im converting it to pdf, I'm not getting it in a full A3 sheet. Please see the image.

Nachricht 6 von 19
syman2000
als Antwort auf: Shamseera.kk73D7Q

The extension of the reference line may cause the print to stretch beyond the A3. Try to stretch it closer to the boundary of the titleblock.











Check out my Revit youtube channel - https://www.youtube.com/user/scourdx
Nachricht 7 von 19
ennujozlagam
als Antwort auf: Shamseera.kk73D7Q

try another PDF driver like cutePDF writer you will be able to get exact a3 size?










Remember : without the difficult times in your LIFE, you wouldn't be who you are today. Be grateful for the good and the bad. ANGER doesn't solve anything. It builds nothing, but it can destroy everything...
Please mark this response as "Accept as Solution" if it answers your question. Kudos gladly accepted.
Nachricht 8 von 19
handjonathan
als Antwort auf: Shamseera.kk73D7Q

Hi @Shamseera.kk73D7Q
Thanks a lot for posting your question to the forums!   Have the solutions suggested by @ennujozlagam @syman2000 @ToanDN  helped with your issue?

We look forward to hearing back from you with more information so we can help you as a community! 



Jonathan Hand


Industry Community Manager | AEC (Architecture & Building)

Nachricht 9 von 19
Shamseera.kk73D7Q
als Antwort auf: handjonathan

Thank you soo much for helping me. The title block is working fine.



Nachricht 10 von 19
Shamseera.kk73D7Q
als Antwort auf: syman2000

The company logo when inserted to Revit title block is getting compressed and the resolution is showing as 72dpi. So the clarity is very less and its looking squished. I tried increasing the size of the logo file (.png) but no luck. What should I do? Please see the attached logo and the title block.

Nachricht 11 von 19
ToanDN
als Antwort auf: Shamseera.kk73D7Q

Use a PDF logo and choose 600 dpi when insert it into your family.

Nachricht 12 von 19
ToanDN
als Antwort auf: Shamseera.kk73D7Q

Try this one.  It should work.





Nachricht 13 von 19
Shamseera.kk73D7Q
als Antwort auf: ToanDN

it's still the same. I can see the pixels like






Nachricht 14 von 19
syman2000
als Antwort auf: Shamseera.kk73D7Q

Why not digitized the Logo into vector format? See attached



Check out my Revit youtube channel - https://www.youtube.com/user/scourdx
Nachricht 15 von 19
ToanDN
als Antwort auf: Shamseera.kk73D7Q

What still the same? The logo now shows in project, but it's quality is based on your source file. If the PDF is high quality vector then you won't see the pixels at all.

Nachricht 16 von 19
Shamseera.kk73D7Q
als Antwort auf: syman2000

Thank you. This is working fine.

Nachricht 17 von 19
Shamseera.kk73D7Q
als Antwort auf: ToanDN

I tried converting logo into pdf. but still I could see the pixels and also the transparent background is changing to white when converting.

but I used dwg logo file. now its working fine.

Thank you so much for helping me.

Nachricht 18 von 19
Shamseera.kk73D7Q
als Antwort auf: syman2000

How did you convert the logo(png file) to dwg format? is it a vector format?

Nachricht 19 von 19
syman2000
als Antwort auf: Shamseera.kk73D7Q

I use Adobe Illustrator raster to vector

Check out my Revit youtube channel - https://www.youtube.com/user/scourdx
