Method to create special features under roof

5 ANTWORTEN 5
GELÖST
Antworten
Nachricht 1 von 6
HeadbuttJ
491 Aufrufe, 5 Antworten

Method to create special features under roof

What is the best way to create below features under roof?

Should I create one more roof on top of another? Or use generic model? Or use walls and floors? Thanks.


5 ANTWORTEN 5
Nachricht 2 von 6
constantin.stroescu
als Antwort auf: HeadbuttJ

you can use :

  • Floor Slab Edge with a predefined Profile
  • a Component Model in Place (Floor or Generic Model) > Sweep with a predefined(or defined on place) Profile placed on the edge of the slab

Constantin Stroescu

EESignature

Nachricht 3 von 6
barthbradley
als Antwort auf: HeadbuttJ

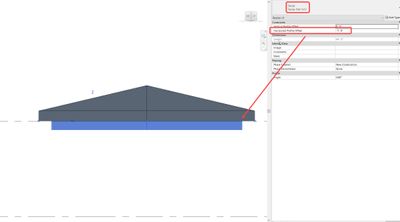

Fascia with negative Horizontal Profile Offset






....and maybe a Soffit underneath the Fascia




Nachricht 4 von 6
HeadbuttJ
als Antwort auf: barthbradley

Thank you. But how about if the cross section of such fascia is not a simple rectangle? What if it is an irregular shape?

Nachricht 5 von 6
barthbradley
als Antwort auf: HeadbuttJ


@HeadbuttJ wrote:

Thank you. But how about if the cross section of such fascia is not a simple rectangle? What if it is an irregular shape?




Roof Fascia is a Sweep created from a Profile Family.  If you can draw your "irregular shaped" Profile as a 2D closed-loop line, then you can create Sweep Geometry from it.



Create a Profile Family | Revit Products 2018 | Autodesk Knowledge Network



BTW: the Fascia Profile shown in my screenshot above is using 1x12 rectangular-shaped Profile.





Nachricht 6 von 6
barthbradley
als Antwort auf: HeadbuttJ

...I'll add that I don't really see anything "irregular-shaped" in your pictures above.  Looks like a typical box soffit to me.  We model those in Revit exactly the way they will be constructed in the field.



Something like this:



3D SECTION FASCIA 2.jpg
