metal and wood stairs with a stepped central beam

3 ANTWORTEN 3
Antworten
Nachricht 1 von 4
lilachshahaf
294 Aufrufe, 3 Antworten

metal and wood stairs with a stepped central beam

Hello everyone,

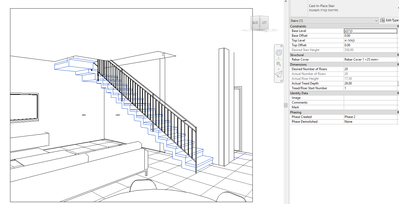

Has been trying for some time to produce metal and wood stairs with a stepped central beam.
Does not succeed in any of the revit tools I know.
Does anyone have a suggestion on how this is possible and not in a model in place






Tags (1)
3 ANTWORTEN 3
Nachricht 2 von 4
ToanDN
als Antwort auf: lilachshahaf

You can model the center support as a narrow monolithic stair placed under the main assembled stair.

Nachricht 3 von 4
lilachshahaf
als Antwort auf: ToanDN

How do I do that?





Nachricht 4 von 4
lucdoucet_msdl
als Antwort auf: lilachshahaf

@lilachshahaf



Edit the stair width to match the support width in sketch mode.



You will also need to edit the landing shape ti reproduce the « T » shaped junction of the supports as the first riser and landing seem to continue to the left most side wall (in you picture).



Hope this helps,



-luc
