Messy lines when importing from Revit to Sketchup

6 ANTWORTEN 6
Antworten
Nachricht 1 von 7
Anonymous
3165 Aufrufe, 6 Antworten

Messy lines when importing from Revit to Sketchup

When I import a revit project to sketchup using an addon, rvt2skp, the models in sketchup becomes very messy, is there a way to remove those additional lines?



I can manually remove those lines my exploding the model and deleting them one by one but its too time consuming, is there a setting for me to fix this?



Any help is much appreciated, thanks



6 ANTWORTEN 6
Nachricht 2 von 7
Viveka_CD
als Antwort auf: Anonymous

Hi @Anonymous



I see that you are visiting as a new member! Welcome to the Autodesk community!Smiley (fröhlich)



To export a Revit file to SketchUp:

From the file menu, go to export > options > exports setups dwg/dxf.

revit export menu



Click on the solids tab, and select ACIS solids.



modify dwg menu in revit



Then try importing the dwg/ dxf in Revit. Let us know if this resolves your issue.

Please see HERE for information on how to import Revit Models into SketchUp



Please mark this response as "Accept as Solution" if it answers your question. Kudos gladly accepted.



Regards,

Tags (1)
Nachricht 3 von 7
Anonymous
als Antwort auf: Anonymous

Looks normal to me... did you think there wouldn't be any cleanup between the two?



Sketchup is basically grabbing a 3D DWG with all the funky triangulations...

Nachricht 4 von 7
Anonymous
als Antwort auf: Viveka_CD

Hi, thanks for the reply but unfortunately this solution doesn't work for me, you need sketchup pro to import dwg/dxf files, im only using the student versions, sketchup make

Nachricht 5 von 7
Anonymous
als Antwort auf: Anonymous

The original model is supposed to look like this, without those additional diagonal lines in the sketchup file. Is there a way to remove these when importing to sketchup?

Nachricht 6 von 7
chrisplyler
als Antwort auf: Anonymous

Not when importing, no.



Try this in Sketchup aftwerwards: Use the Smooth/Soften tool, and then then turn off (uncheck) the display of hidden geometry (View Hidden Geometry).

Nachricht 7 von 7
ToanDN
als Antwort auf: Anonymous

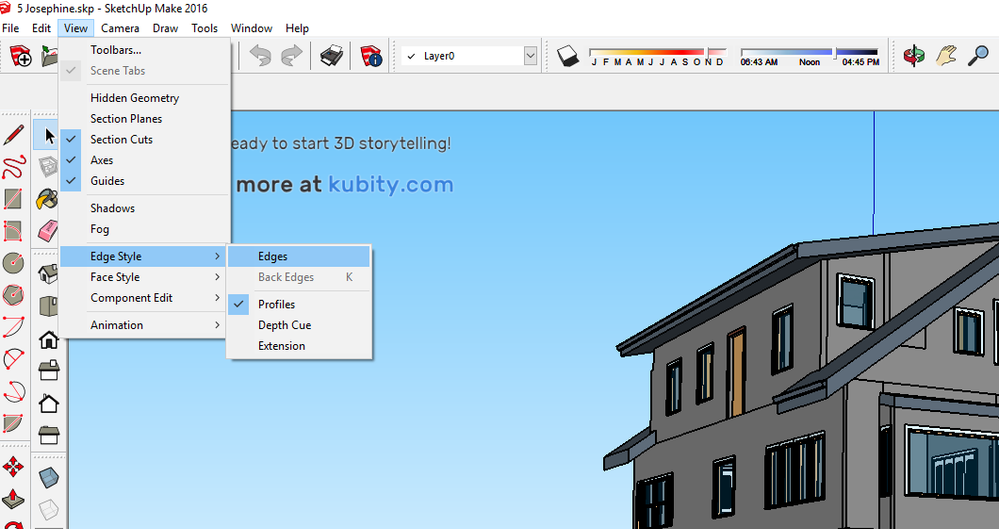

Do not check Edges under View/ Edge Style.
