Material Volume is missing in schedule

Dear All,

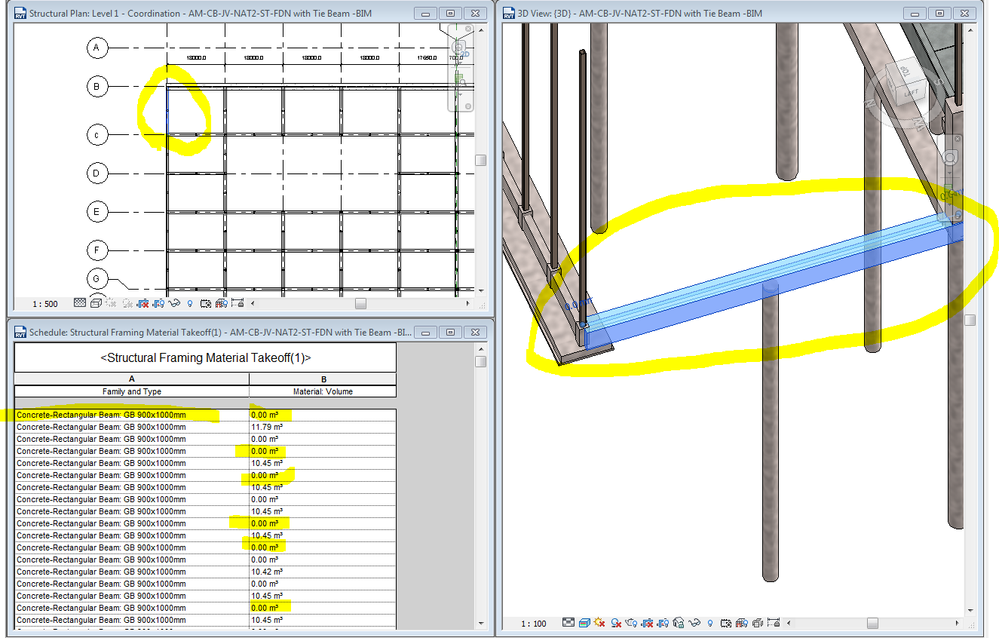

Please give me a solution for this..the beam material is showing for some element and  for some element it is showing as 0.00. All the members are from the same family and type.

Material Take of Problem.PNG

13 ANTWORTEN 13
Nachricht 2 von 14
FGPerraudin
als Antwort auf: shefypattambi

Hi Shefy,



It s very difficult to suggest any solution simply based on that picture...

Could you maybe send a file? containing a beam and you schedule?



François



Francois-Gabriel Perraudin
BIM management and coaching

Nachricht 3 von 14
semko_dm
als Antwort auf: shefypattambi

Hi!

Could you attach this family to help us better understand your issue?



If my post answers your question, please click the "Accept as Solution" button. This helps everyone find answers more quickly!

Kind regards,
Dmitriy Semko.



Dmitriy Semko
BIM-Manager
Blog
Facebook | Telegram | LinkedIn

Nachricht 4 von 14
shefypattambi
als Antwort auf: FGPerraudin

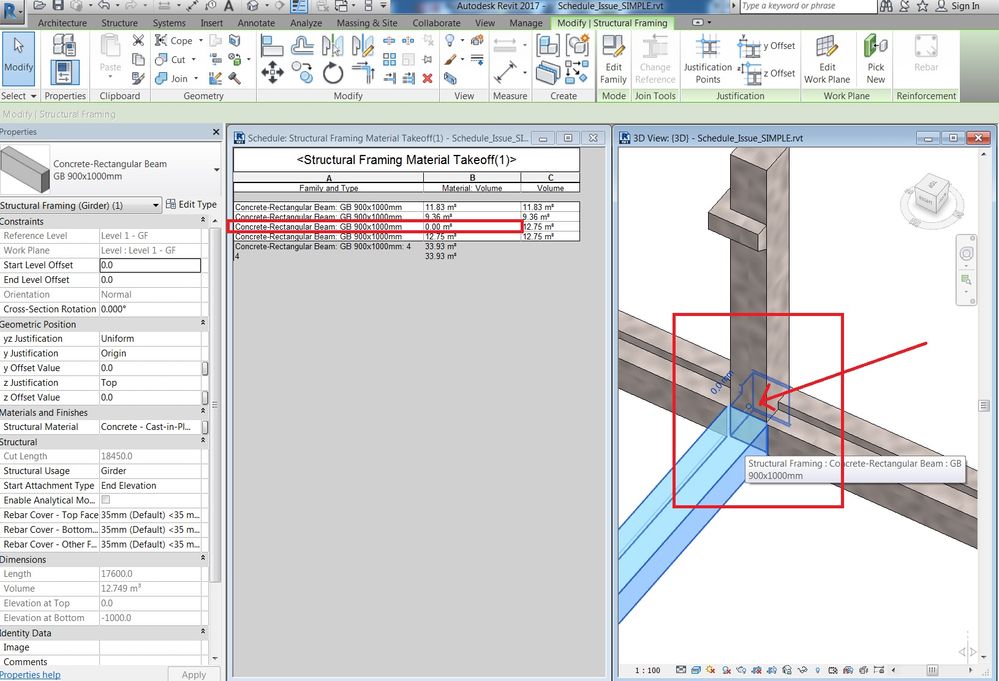

Please find the file from the following link. This is a smaple file and please check the structural frame schedule.





https://drive.google.com/open?id=0Bw6GA2wGIVm3dUpkUnhEZ0ZhbVE

Nachricht 5 von 14
semko_dm
als Antwort auf: shefypattambi

As hotfix, you can use element Volume instead of Material Volume.






Dmitriy Semko
BIM-Manager
Blog
Facebook | Telegram | LinkedIn

Nachricht 6 von 14
semko_dm
als Antwort auf: shefypattambi

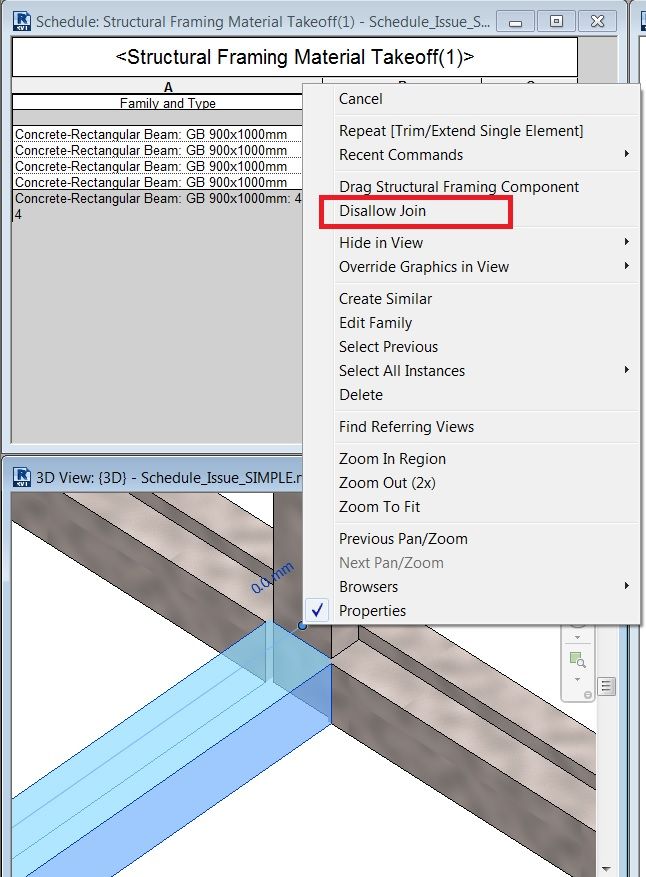

The thing is that columns and beams are joined wrong. In screen capture below you can see sort of phantom geometry inside the column. That fantom belongs to highlighted beam and gives us zero material volume.



If you disallow join and trim the beam to the column surface, that's phantom and zero material value will disappear.



If my post answers your question, please click the "Accept as Solution" button. This helps everyone find answers more quickly!

Kind regards,
Dmitriy Semko.








Dmitriy Semko
BIM-Manager
Blog
Facebook | Telegram | LinkedIn

Nachricht 7 von 14
shefypattambi
als Antwort auf: semko_dm

Excellent Reply Thank you..Smiley (fröhlich)

Nachricht 8 von 14
semko_dm
als Antwort auf: shefypattambi

You are welcome Smiley (fröhlich)



Dmitriy Semko
BIM-Manager
Blog
Facebook | Telegram | LinkedIn

Nachricht 9 von 14
shefypattambi
als Antwort auf: semko_dm

Did you access the disallow join option by right click mouse?

I think this option is gone in Revit 2017.1 version

Nachricht 10 von 14
semko_dm
als Antwort auf: shefypattambi

I'm already on revit 2017.1 and it's still here under right mouse click.






Dmitriy Semko
BIM-Manager
Blog
Facebook | Telegram | LinkedIn

Nachricht 11 von 14
semko_dm
als Antwort auf: shefypattambi

But be careful, after this join\trim
actions , you must check your analytical model.







Dmitriy Semko
BIM-Manager
Blog
Facebook | Telegram | LinkedIn

Nachricht 12 von 14
shefypattambi
als Antwort auf: semko_dm

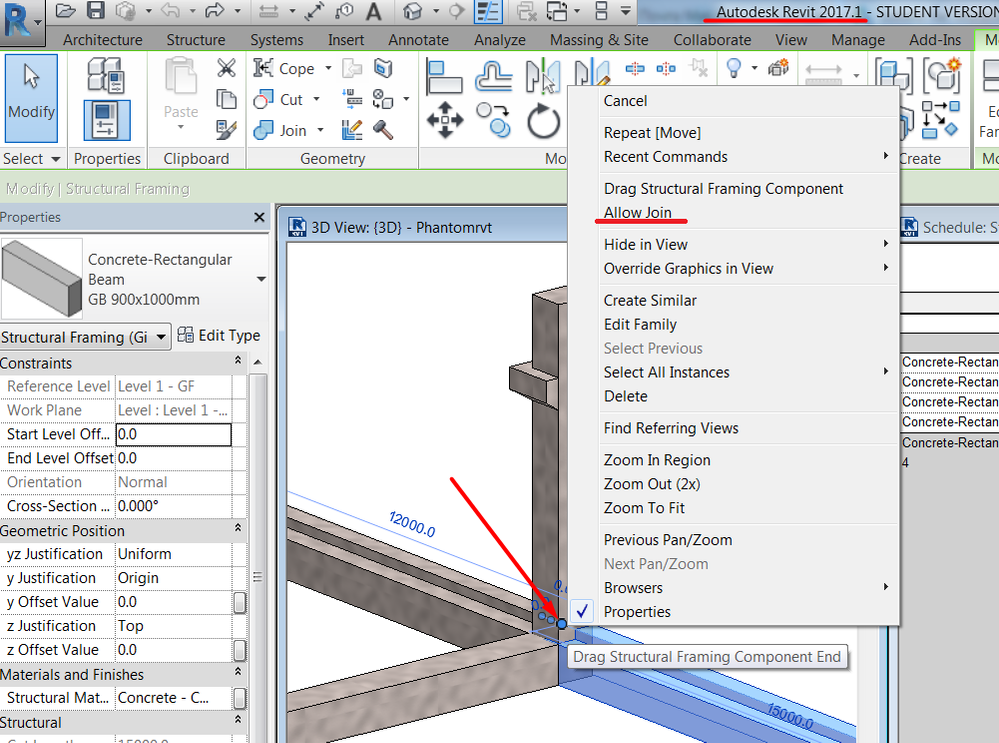

Now disallow join is appearing once I right click on the drag end bubble. Did you try "switch joint order command'' option. it will eliminate that null volume from schedule and also it would not affect our analytical model.



But I feel that there is some problem. In previous version of Revit  I am always draw the beam from center to center and the beam will cut back depending upon the bounding box set in the beam family. But in this case the bounding box is not working as intended. I have to investigate more.

Nachricht 13 von 14
semko_dm
als Antwort auf: shefypattambi

I won't tried "switch join order command'', but you are right it's the best way, and it have no problem with analytics.



Dmitriy Semko
BIM-Manager
Blog
Facebook | Telegram | LinkedIn

Nachricht 14 von 14
Anonymous
als Antwort auf: semko_dm

Thank you very much! I had the same Issue and finally solved.
