MATERIAL PATTERN NOT SHOWING IN MODEL-IN-PLACE FAMILY

5 ANTWORTEN 5
Antworten
Nachricht 1 von 6
jledgewood409
1216 Aufrufe, 5 Antworten

MATERIAL PATTERN NOT SHOWING IN MODEL-IN-PLACE FAMILY

I have created a model-in-place family that consists of two extrusions. on extrusion A i have applied a material that has a surface pattern. the pattern shows while in 3D and while in the edit family mode. when i am in an elevation the pattern does not show.

5 ANTWORTEN 5
Nachricht 2 von 6
barthbradley
als Antwort auf: jledgewood409

Post the file.

Nachricht 3 von 6
barthbradley
als Antwort auf: jledgewood409

Are you sure your Elevation View is not cutting through the Element?

Nachricht 4 von 6
jledgewood409
als Antwort auf: barthbradley

I BELIEVE I WAS ABLE TO EXTRACT THE MODEL-IN-PLACE FAMILY INTO ITS OWN FILE. SEE ATTACHED

Nachricht 5 von 6
jledgewood409
als Antwort auf: jledgewood409

IT DID NOT APPEAR TO BE CUTTING THROUGH THE ELEMENT. BUT TO BE SURE I CREATED A CUT PATTERN AND IT DID NOT SHOW UP.

Nachricht 6 von 6
barthbradley
als Antwort auf: jledgewood409

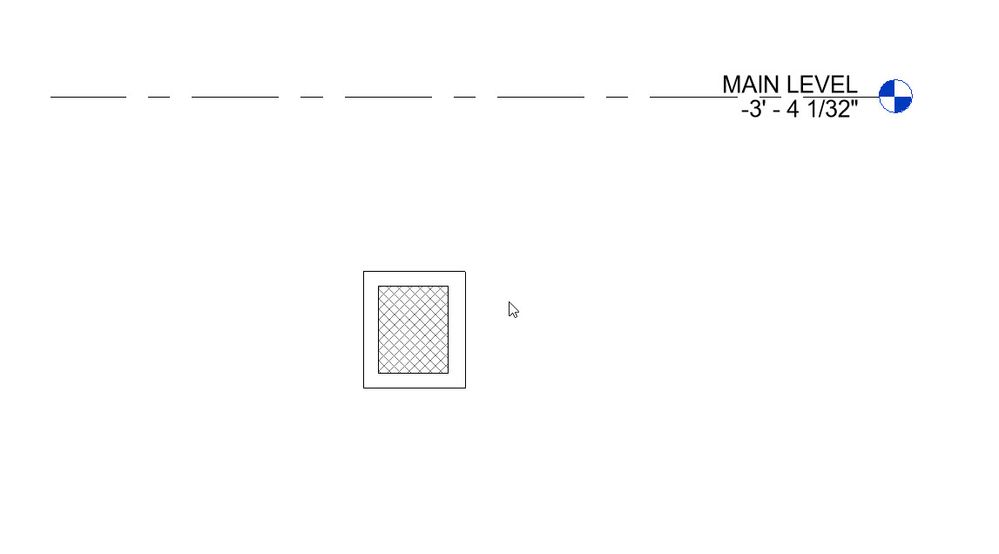

Screen Hatch shows in Elevation here.
