Masking Region in Legend does not mask when printing

5 ANTWORTEN 5
GELÖST
Antworten
Nachricht 1 von 6
Anonymous
3718 Aufrufe, 5 Antworten

Masking Region in Legend does not mask when printing

Hi,



I have a masking region in a legend placed over a view on a sheet.



When printing, the masking region will hide model geometry but not filled regions in the view.



Any ideas on this?





I am using Revit 2016. I have tried printing using Adobe Acrobat and CutePDF. Using a symbol-annotation masking region in the legend will not work for me as this will hide filled regions and detail lines in my legend. I am currently solving this by drawing a masking region in every view under the legend, but I'm hoping to solve this within the legend.





Many thanks,

Ellen

5 ANTWORTEN 5
Nachricht 2 von 6
Anonymous
als Antwort auf: Anonymous

Hey there.

When you say a "filled region", you`re talking about some filled pattern or the tool filled region?
Because if you have any filled region and a mask region together, you have to select the filled region and Send to back or select the mask region and Bring to front.




If your problem has been solved, please click on Accept as Solution. Then others users can take benefit of it.



Regards,



Felipe Góes
Autodesk Instructor

Nachricht 3 von 6
Anonymous
als Antwort auf: Anonymous

Hi,



when I  say "filled region" I mean a hatch region in a view.



I have a filled region in a plan view on a sheet. The view covers the whole sheet. I place a legend view over the view on the sheet. Even though I have a masking region in my legend the filled region in the view behind prints. Below screenshot highlights the legend view (Acrobat pdf-print). The plan view behind it has a filled region (diagonal hatch).




Many thanks,

Ellen

Nachricht 4 von 6
ToanDN
als Antwort auf: Anonymous

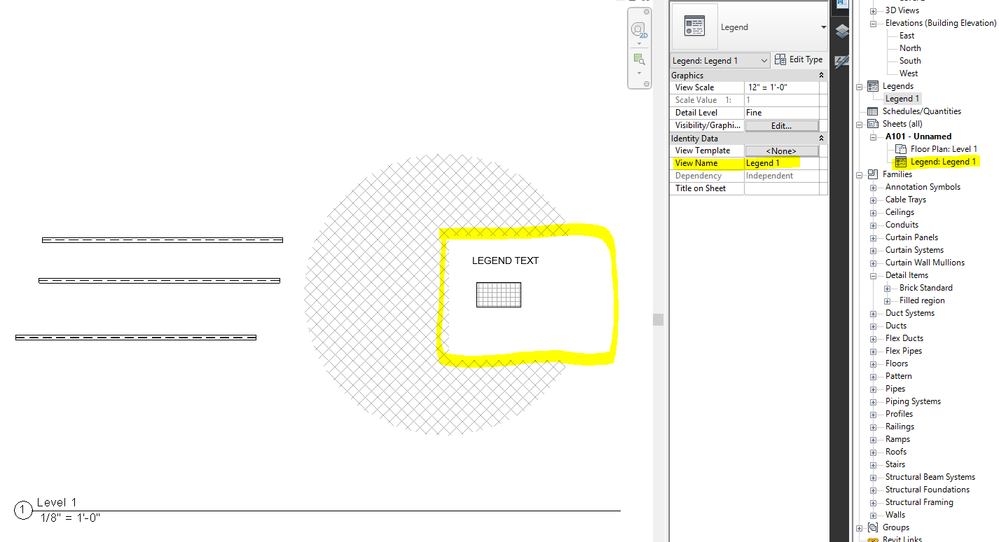

It seems to work here.  The circle area is a Filled Region in the floor plan view.  The highlighted rectangle is a Masking Region in the Legend view.




Nachricht 5 von 6
Anonymous
als Antwort auf: ToanDN

Hi Toan,



Yes, it looks fine when viewing it in Revit, but when I print using Adobe Acrobat or CutePDF it doesn't work anymore.



Many thanks,

Ellen

Nachricht 6 von 6
ToanDN
als Antwort auf: Anonymous

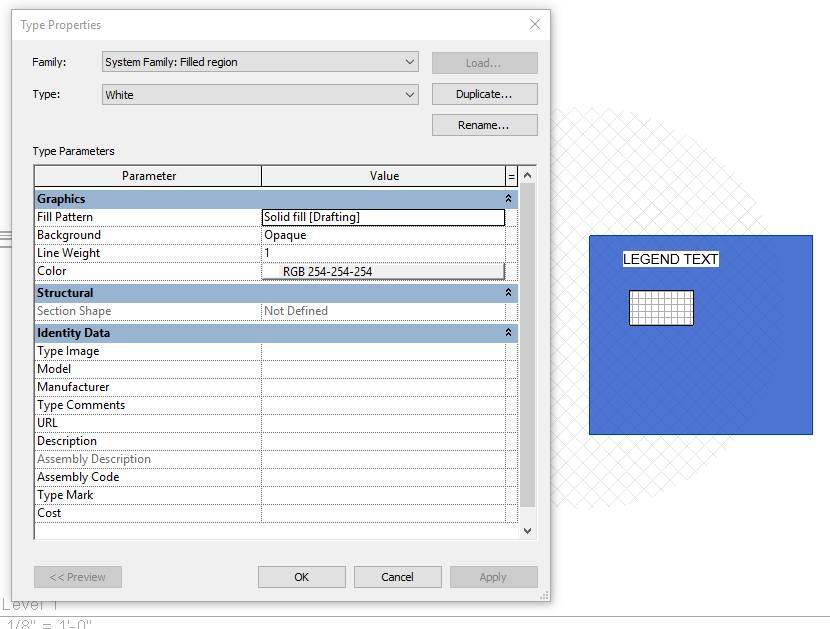

Sounds like a bug.  But you can fix it.  Instead of a masking region, draw a filled region with solid pattern and 254,254,254 color (do not use white).
