Mask region not masking in family when loaded

14 ANTWORTEN 14
GELÖST
Antworten
Nachricht 1 von 15
XXalessio.amodioXX
8938 Aufrufe, 14 Antworten

Mask region not masking in family when loaded

Hi all,
I have to mask a a connection within the family but when i loaded it into the project the mask region is not asking what it should. Any ideas?

14 ANTWORTEN 14
Nachricht 2 von 15
dzanta
als Antwort auf: XXalessio.amodioXX

i would try the following:



- ensure masking region is on a plane that is above the object being masked

- upload the family so we can look at it and play with it


Dzan Ta, AEE, ASM, ACI.

EESignature



Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.

EESignature


Autodesk Community | Twitter | YouTube | Facebook | LinkedIn |

Win 11 Pro/DELL XPS 15 9510/i9 3.2GHz/32GB RAM/Nvidia RTX 3050Ti/1TB PCIe SSD/4K 15.4" Non-Touch Display

Nachricht 3 von 15
barthbradley
als Antwort auf: XXalessio.amodioXX

Turn on Hidden View.  Maybe you're in Wireframe.

Nachricht 4 von 15

Can you upload the family, please?



Nachricht 5 von 15

Hi ,

Here you have the project .



Nachricht 6 von 15
XXalessio.amodioXX
als Antwort auf: dzanta

HI,

Masking region is on plane, I have upload the project.

Nachricht 7 von 15
XXalessio.amodioXX
als Antwort auf: barthbradley

HI,

View in project is set in hidden line.

Nachricht 8 von 15
barthbradley
als Antwort auf: XXalessio.amodioXX

  1. In Plan View, place a Vertical Ref Plane on the Right Side of the two geometries in the View, and then name the Ref Plane.  NOTE: Make sure to draw the Ref Plane slightly offset from the geometry.
  2. In Right Elevation View, Set the Current Workplane to the Named Ref. Plane you just created above.
  3. Draw your Mask Region on that name Ref. Plane, and then uncheck "Draw in Foreground".
  4. Load into Project. Masking Region now fully covers elements behind it.






Read this to understand more about method used:



https://knowledge.autodesk.com/support/revit-products/learn-explore/caas/CloudHelp/cloudhelp/2016/EN...

Nachricht 9 von 15
XXalessio.amodioXX
als Antwort auf: barthbradley

Nice call the trick  Ref Plane slightly offset from the geometry.

Nachricht 10 von 15
trodriguez1
als Antwort auf: XXalessio.amodioXX

The masking regions do not hide annotation lines, is there a way to fix this problem? Generic annotations will mask, but not when inserted into a model category family.




Nachricht 11 von 15
ljohnson_OCI
als Antwort auf: trodriguez1

Did you ever get a solution to this problem or find a work around?

Nachricht 12 von 15
ConstantineC
als Antwort auf: barthbradley

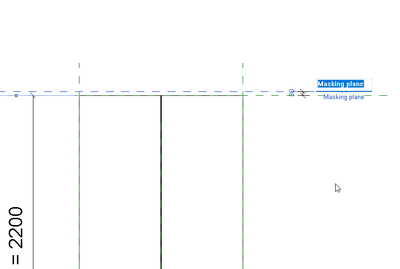

I just had similar issue. I had to create a new ref plane on offset it above an extrusion geometry of a simple cabinet.

I created a void cut to show the door gap in 3D but I did`n want it to appear in floorplan.

Why is this necessary since the Masking region was already set to Draw in Foreground?

I think it sometimes works?







Nachricht 13 von 15
ConstantineC
als Antwort auf: XXalessio.amodioXX

Unfortunately I just loaded the family in the project and the masking does`nt work




Nachricht 14 von 15
ConstantineC
als Antwort auf: XXalessio.amodioXX

Does anyone know whats the issue with the masking ?

I have it set to another reference plane on top of the 3D. It does mask inside the family but not in the project




Nachricht 15 von 15
ConstantineC
als Antwort auf: XXalessio.amodioXX

Nevermind, I just realized its because of the Cutplane. The cabinet was 2.8 meters tall.

I just hid the extrusion in the Plan view and now it only shows the detail.
