MASHRABIYA PANEL

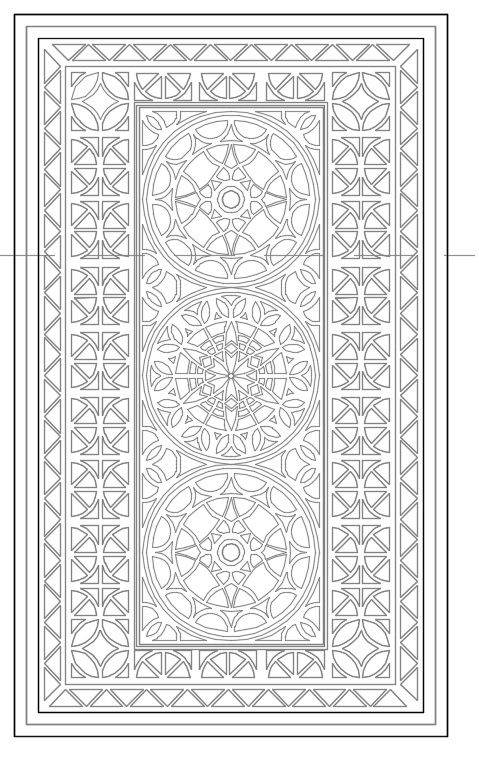

HI, ANYONE HAVE MASHRABIYA PANEL FAMILY AS PER IMAGE OR PLEASE ADVICE TO ME HOW TO CREATE THIS PANEL.



PANEL 1PANEL 1PANEL 2PANEL 2

4 ANTWORTEN 4
Nachricht 2 von 5
MostafaElashmawy
als Antwort auf: Anonymous

I think best thing is to search for a colored photo and apply it as a material.

or you can color this one in Photoshop.

Mostafa Elashmawy
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.

EESignature

Nachricht 3 von 5
RDAOU
als Antwort auf: Anonymous

@Anonymous



  1. Start a family...specialty equipment, a pattern based generic or some other category depending on where and how you are using the panel.
  2. if you have the CAD or PDF, link it in
  3. model the panel as an extrusion by tracing over the linked/imported CAD or PDF
  4. once done get rid of the cad

There are a few musharabias for download on BIMOBJECT.COM you can download one and reverse engineer it (see how t is done and do the same https://www.bimobject.com/en/parasoleil/product/parasoleil-casablanca-cba




YOUTUBE | BIM | COMPUTATIONAL DESIGN | PARAMETRIC DESIGN | GENERATIVE DESIGN | VISUAL PROGRAMMING
If you find this reply helpful kindly hit the LIKE BUTTON and if applicable please ACCEPT AS SOLUTION


Nachricht 4 von 5
constantin.stroescu
als Antwort auf: Anonymous

if you have the model already drawn in a CAD file then you can use it directly in Revit by importing it in Edit Profile Sketch mode of a Wall as shown in my screencast:

https://knowledge.autodesk.com/community/screencast/7042f118-adde-418c-af8e-06ad13210c49

Constantin Stroescu

EESignature

Nachricht 5 von 5
Anonymous
als Antwort auf: constantin.stroescu

THANK U SIR
