Make linework visible in 3d

6 ANTWORTEN 6
GELÖST
Antworten
Nachricht 1 von 7
steve
2178 Aufrufe, 6 Antworten

Make linework visible in 3d

Can anyone tell me why the linework (generic models projection lines) of this family is not visible in a 3d isometric view?   How to make it visible?



https://drive.google.com/open?id=1hFrCFhEoZOPkljzIsutP9zoDry7ZFXSW&authuser=steve@designbuildllc.com...





6 ANTWORTEN 6
Nachricht 2 von 7
barthbradley
als Antwort auf: steve

I can't open your file, but can you check the properties of the line in the family itself?  It may be coming from a nested Category.



p.s. can you post the family another way? One that doesn't require a retinal scan and top security clearance to open? Smiley (zwinkernd)

Nachricht 3 von 7
ToanDN
als Antwort auf: steve

Make sure they are model lines, not symbolic lines.

By the way, the link needs permission to download. Why don't you just upload the file here?
Nachricht 4 von 7
steve
als Antwort auf: steve

Attached -  hi tech break in not required.

Nachricht 5 von 7
ToanDN
als Antwort auf: steve

As I said, they are symbolic lines so they do not show in 3d.  Convert them to model lines and keep that in mind so next time you can draw them as model lines from the get go.



See revised file.

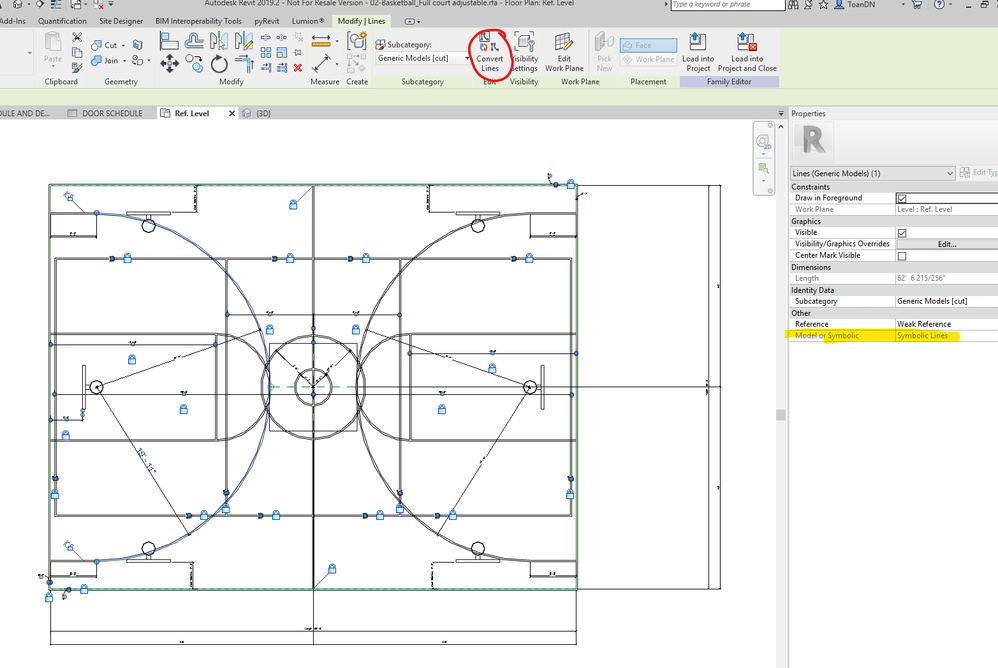

Annotation 2019-07-10 174438.pngAnnotation 2019-07-10 174842.png

Nachricht 6 von 7
barthbradley
als Antwort auf: steve

Yep, not Model Projection Lines.

Nachricht 7 von 7
steve
als Antwort auf: barthbradley

thanks!
