Make cavity on a wall

4 ANTWORTEN 4
GELÖST
Antworten
Nachricht 1 von 5
mahanmotamedi1991
407 Aufrufe, 4 Antworten

Make cavity on a wall

Hello Everyone,

I'm looking for a good method to make a cavity on a wall. Attached I have an image of what I want to do.

BTW, my cavity is not only vertical.

Best,


4 ANTWORTEN 4
Nachricht 2 von 5
RDAOU
als Antwort auf: mahanmotamedi1991

@mahanmotamedi1991



Several ways...here are 4 fairly simple options you could use



Option 1: Use an in-place void Sweep or Extrusion to cut wall element



Option 2: Use the tool Wall: Reveal



Option 3: Use a Face based Generic model to model the U Profile + the Void that will cut the wall



Option 4: Add the Wall Cut as part of the insert family (that element to the left looks like an insert - door/window)







YOUTUBE | BIM | COMPUTATIONAL DESIGN | PARAMETRIC DESIGN | GENERATIVE DESIGN | VISUAL PROGRAMMING
If you find this reply helpful kindly hit the LIKE BUTTON and if applicable please ACCEPT AS SOLUTION


Nachricht 3 von 5
mahanmotamedi1991
als Antwort auf: RDAOU

Thank you very much for your response.
The "Wall reveal" method works. But I'm not very comfortable using it since I have to work in 3D mode to use it.
I had thought about the void sweep and void extrusion. But I could not subtract anything from the Wall element using neither Void sweep nor void extrusion. What is your opinion on that?

Best,

Mahan SharedScreenshot.jpg

Nachricht 4 von 5
RDAOU
als Antwort auf: mahanmotamedi1991

@mahanmotamedi1991



Use Cut Geometry before you finish the inplace void

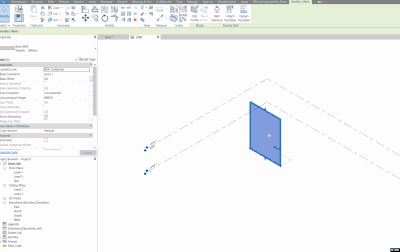

inplace void.gif





YOUTUBE | BIM | COMPUTATIONAL DESIGN | PARAMETRIC DESIGN | GENERATIVE DESIGN | VISUAL PROGRAMMING
If you find this reply helpful kindly hit the LIKE BUTTON and if applicable please ACCEPT AS SOLUTION


Nachricht 5 von 5
mahanmotamedi1991
als Antwort auf: RDAOU

Thanks.
