Looking for alternatives to model patterns assigned to materials

4 ANTWORTEN 4
Antworten
Nachricht 1 von 5
User101_centralbim
259 Aufrufe, 4 Antworten

Looking for alternatives to model patterns assigned to materials

Hi.

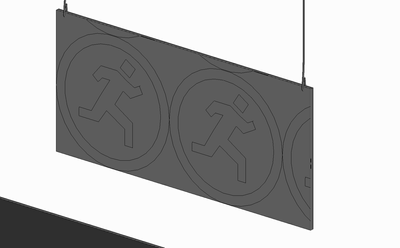

I'm looking for a way to visualize an image of a logo in families in a 3D view in shaded/consistent colors. The problem is that this logo has too much detail for a pattern because of its curved lines:






After creating this pattern and assigning to the material of the family, it looks weird in its curved corners because the lines that make the curved shapes are too small. I have created many patterns by changing the size and scale but the result never looks good, which makes me think that creating a pattern might not be the best solution.








I got the best result by replacing all curved lines with straight lines and finding the perfect size and scale, but I wanted to ask if there's any other alternative to model paterns.






thank you

4 ANTWORTEN 4
Nachricht 2 von 5
blank...
als Antwort auf: User101_centralbim


@User101_centralbim wrote:

it looks weird in its curved corners because the lines that make the curved shapes are too small.


Why are you creating curves with a million short lines instead of one arc?

Nachricht 3 von 5
User101_centralbim
als Antwort auf: blank...

The curves are arcs for arms and legs and a circle for the head but they are seen as straight lines in the pattern model, that's the point of this thread.

Nachricht 4 von 5
blank...
als Antwort auf: User101_centralbim

Can you share the model?

Nachricht 5 von 5
ToanDN
als Antwort auf: User101_centralbim

You could try an adaptive family and repeat it on a divided surface.  That way you can draw the figure using model lines.



I wouldn't go there if I were you.  If the figure is small enough (liked on a signage) then what you did with straight lines is okay.
