Linking CAD File

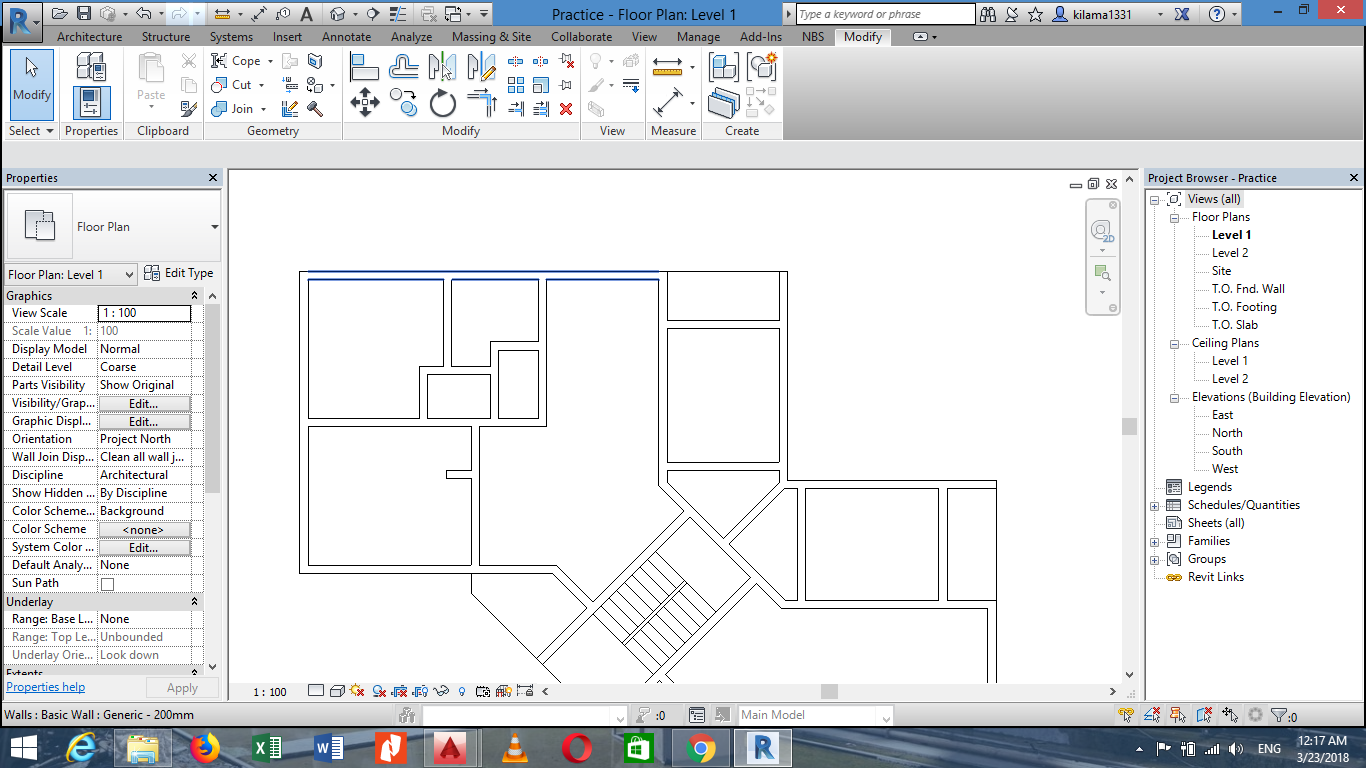

I just linked a CAD file into Revit and the original file was in black and white. While tracing wall in Revit i cant now see the position of doors and windows. Can you help in any way

Thanks

IamKilama

6 ANTWORTEN 6
Nachricht 2 von 7
Viveka_CD
als Antwort auf: kilama1331

Hi @kilama1331



Did you check if they are hidden in the views, or in a different workset/ phase?



What are the view range settings?



Regards,

Nachricht 3 von 7
barthbradley
als Antwort auf: kilama1331

How about just turning on Wireframe mode?

Nachricht 4 von 7
kilama1331
als Antwort auf: Viveka_CD

How can i access that?
well, i have brought it to the foreground. After inserting the windows and Doors, i took it back to the background.

Nachricht 5 von 7
Corsten.Au
als Antwort auf: kilama1331

Bring it to Fore ground, and use Wireframe mode..

Corsten
Building Designer
Nachricht 6 von 7
marco.defina
als Antwort auf: kilama1331

There are many possibility...

File CAD in another level or out of you range of visibility.

File CAD out of your crop box

Visibility of imported CAD files off

Scale of CAD file



Can you share the file so we can help you?



BIM Manager - HVAC and Plumbing designer https://www.autodesk.it/content/dam/autodesk/www/products/responsive-imagery/responsive-badges-compare/2019/navisworks-manage-2019-badge-75x75.pngApp AutoCAD per dispositivi mobili premiumNavisWorks Simulate3ds Max___________________________________________________________________________
Please use Mark Solutions!.Accept as Solution and Give Kudos!Give Kudos as appropriate to further enhance these forums.

Nachricht 7 von 7
Viveka_CD
als Antwort auf: kilama1331

Hi @kilama1331



Once you open your project in Revit and link in your CAD dwg you can check if the door/ window layers are hidden.



Type VV/VG (visibility graphics) or Go to your view tab> graphics panel> visibility graphics> expand you dwg and see the listed layers - see if you have checked the doors and windows.



See image below:

VGVG



Let me know if you have any questions and if this helps.



Regards,
