Join Different Shaped Roofs

8 ANTWORTEN 8
GELÖST
Antworten
Nachricht 1 von 9
PhilvK
423 Aufrufe, 8 Antworten

Join Different Shaped Roofs

Roof '1' below is a typical single slope roof sloping up as shown by the arrow. Roof '2' is radial, 18" higher than '1', and at the same slope. I can't seem to be able to join these roofs, but can approximate it by edit '2's boundary. Is there a better way to get a clean join? Use a void?

Revit Differing Roofs.jpg

8 ANTWORTEN 8
Nachricht 2 von 9
barthbradley
als Antwort auf: PhilvK

Probably the easiest way is to penetrate fully the lower roof with the upper curved roof, Join them, and then use an In-Place Void to cut the excess roof.

Nachricht 3 von 9
barthbradley
als Antwort auf: PhilvK

Post your file.  I'll take a whack at it.

Nachricht 4 von 9
PhilvK
als Antwort auf: barthbradley

I appreciate you looking at it! (V2023)



Nachricht 5 von 9
barthbradley
als Antwort auf: PhilvK

You want to remove this?



Remove this.png



If so, I'd Join the 2 Roofs and then cut away this portion with an In-Place Void.

Nachricht 6 von 9
PhilvK
als Antwort auf: barthbradley

Yes, I need to remove that! Thanks!

Nachricht 7 von 9
barthbradley
als Antwort auf: PhilvK

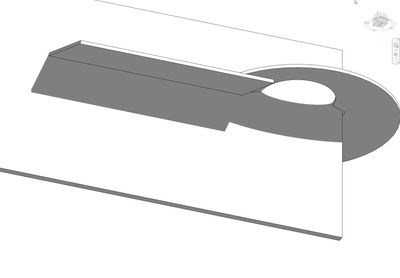

Remove this 2.pngRemove this 3.png

Remove this 4.png

Nachricht 8 von 9
barthbradley
als Antwort auf: PhilvK

.

Nachricht 9 von 9
PhilvK
als Antwort auf: barthbradley

Nice!! Thank you!
