is there a way to "explode" a wall, in order to stretch certain layers? divide p

13 ANTWORTEN 13
GELÖST
Antworten
Nachricht 1 von 14
svalen
3402 Aufrufe, 13 Antworten

is there a way to "explode" a wall, in order to stretch certain layers? divide p

Does Revit allow you to explode a wall so that layers all become detached? example, model gypsum stud wall, explode, then delete or stretch gypsum from one side? I know of the way to do this in edit type, base extensions etc, but was wondering if there is a type of explode tool for this? Divide parts?



Also, does Revit Lt have divide parts?

13 ANTWORTEN 13
Nachricht 2 von 14
Redrunner92
als Antwort auf: svalen

This is what "Create Parts" is used for. After selecting a wall, use the button on your Modify tab:

Create parts.png

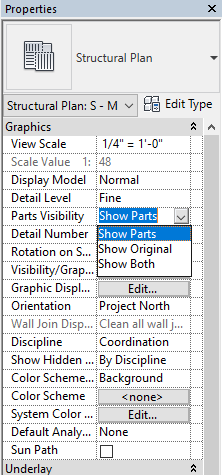

Be sure "Show Parts" is selected in your view's Properties in any view in which you want to see a wall as parts rather than an integrated wall (after you have selected a wall and clicked Create Parts).



Show Parts.png

Nachricht 3 von 14
hmunsell
als Antwort auf: svalen

if you are only stretching one layer edit the wall type and unlock that layer. i don't believe using the parts tool will not allow you to "Stretch" a wall layer, only divide it.





Howard Munsell
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.



EESignature


Nachricht 4 von 14
Redrunner92
als Antwort auf: hmunsell

Good point. @svalen  To do what @hmunsell  said:

Wall layers.png

Nachricht 5 von 14
hmunsell
als Antwort auf: Redrunner92

Thanks... i have a screen cast for it, but i couldn't get it to attach.... :enttäuschtes_Gesicht:



here it is....
















































Howard Munsell
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.



EESignature


Nachricht 6 von 14
Redrunner92
als Antwort auf: hmunsell

Dontcha hate it when attachments won't work? Haha. Wonderful, that's a good explanation.

Nachricht 7 von 14
hmunsell
als Antwort auf: Redrunner92

especially when your like "i Know that one....." and then your computer decides not to cooperate LOL



thanks, just happen to have a similar situation over the weekend that i made the screencast for. Actually for that one i ended up suggesting a Create Parts as a solution. it all depends on the situation....





Howard Munsell
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.



EESignature


Nachricht 8 von 14
svalen
als Antwort auf: Redrunner92

I see, thank you for this. Unfortunately, I'm using Revit LT, I don't beleive this option is avaiable...

Nachricht 9 von 14
Redrunner92
als Antwort auf: hmunsell

Yeah and you're thinking "Please don't let that other person post before I do!" No worries though, you are an expert at this whereas I just have a bit more experience than many new users. I'll defer to you gladly.

Nachricht 10 von 14
Redrunner92
als Antwort auf: svalen

Bummer! I see that now on the list I posted to you in another of your posts. Do you not have the Edit Wall Assembly option either? That isn't specified in that PDF list.

Nachricht 11 von 14
svalen
als Antwort auf: Redrunner92

Do you mean the standard "edit type"  option?

edit wall.JPG



If not...where is Edit Wall Assembly?

Nachricht 12 von 14
Redrunner92
als Antwort auf: svalen

Click into that Edit Type menu. The first row should be called Structure. Then click the Edit... button.

Edit Structure.png

Nachricht 13 von 14
svalen
als Antwort auf: Redrunner92

Oh yes, I know of that method.  Thanks!

Nachricht 14 von 14
preritk
als Antwort auf: svalen

Well the easiest way to do that would be-

1. Select the wall.

2. Create Parts.

3. Switch to 3d view and select each part and use displace elements.

4. Repeat the same process for each element.
