Is it possible to sketch this staircase? Image and details are given in the post

15 ANTWORTEN 15
GELÖST
Antworten
Nachricht 1 von 16
cakir.omertr
1279 Aufrufe, 15 Antworten

Is it possible to sketch this staircase? Image and details are given in the post

Hello everyone!



I'm trying to draw this small staircase by sketching it but when I start drawing the risers, Revit does not apply each riser. The dimensions of the staircase are 250x250cm, the desired nr of risers is 16, the riser height is 17.81cm, tread depth is 30cm. I attached a second image that shows where I drew the boundaries in the sketch. Blue lines show where I try to draw the risers. I'm also using the Insitu concrete 150mm waist option.



My problem is, for some reason, Revit doesn't draw each riser. Is it because I draw each riser line from the same point or do they clash with each other? I have never drawn something like this small residential staircase before so I'm confused about what causes this.



Can anyone help me with this, please?

Thanks a lot!

Tags (1)
Beschriftungen (1)
15 ANTWORTEN 15
Nachricht 2 von 16
ToanDN
als Antwort auf: cakir.omertr

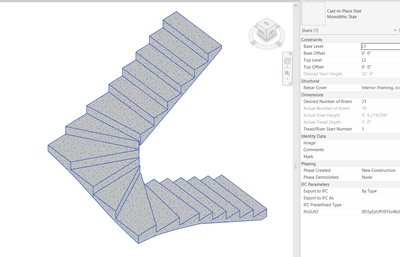

Like this?











Nachricht 3 von 16
cakir.omertr
als Antwort auf: ToanDN

Is this fitting into an area that is 250x250cm? Because your settings are different than mine. My stairs are also in an odd shape. For example, the first steps are shaped like a triangle, and then the stairs rotate and go normally until the landing. When I draw my stairs like your example, Revit creates every riser but when I draw the couple first triangle risers it doesn't create some of the risers which I don't know why :verwirrtes_Gesicht:

Nachricht 4 von 16
ToanDN
als Antwort auf: cakir.omertr













Nachricht 5 von 16
cakir.omertr
als Antwort auf: ToanDN

How come yours can be created but I'm getting errors? It should be simple to do this. Can I see your Revit file or at least your stair boundaries? I feel like a dumb. Thanks!

Nachricht 6 von 16
ToanDN
als Antwort auf: cakir.omertr

Revit 2024 file attached.

Nachricht 7 von 16
SteveKStafford
als Antwort auf: cakir.omertr

Your boundary needs a different sketch, see attached and mockup file.





Steve Stafford
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.
EESignature

Nachricht 8 von 16
cakir.omertr
als Antwort auf: SteveKStafford

I'm still using Revit 2023. Is it possible to upload a screenshot of your stair boundary? Thanks!

Nachricht 9 von 16
ToanDN
als Antwort auf: cakir.omertr

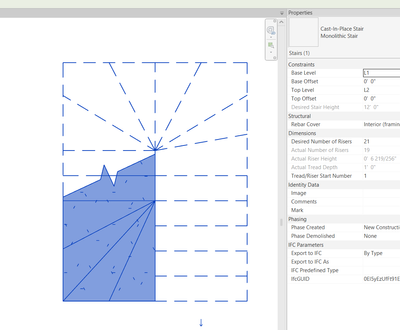

Yes.  The stair has two runs.  Convert both to sketch and edit them individually.











Nachricht 10 von 16
SteveKStafford
als Antwort auf: cakir.omertr







Steve Stafford
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.
EESignature

Nachricht 11 von 16
cakir.omertr
als Antwort auf: cakir.omertr

Thanks a lot for everyone for their help. Both of these responses seem useful. I will try them once I get back to my project. I'll put an update once I do it. Thanks again!

Nachricht 12 von 16
Alfredo_Medina
als Antwort auf: cakir.omertr


@cakir.omertr wrote:

Thanks a lot for everyone for their help. Both of these responses seem useful. I will try them once I get back to my project. I'll put an update once I do it. Thanks again!


Apart from Revit topics,... check best practices and building codes for stairs. Explore other options, a different solution, safer, more comfortable, code compliant.


Alfredo Medina _________________________________________________________________ ______
Licensed Architect (Florida) | Freelance Instructor | Profile on Linkedin
Nachricht 13 von 16
cakir.omertr
als Antwort auf: Alfredo_Medina

You are definitely right. This project I'm trying to do is a small house on a village which I'm only assigned to make the sketched plans on Revit. To me this staircase solution is not the best, much safer, simpler and user friendly options could be done but unfortunately I'm only here to model. Apparently nobody cares about the codes or anything there.

Nachricht 14 von 16
blank...
als Antwort auf: cakir.omertr

Valid suggestions, but nobody acutally solved the stairs exactly as OPs images.

I tried. I failed. Can this exact stair be done?


Nachricht 15 von 16
blank...
als Antwort auf: cakir.omertr

Update

closest I got is by putting a small gap between the "runs". @cakir.omertr not sure if that would work for you.







Nachricht 16 von 16
cakir.omertr
als Antwort auf: blank...

This could also work. Looks a lot cleaner and smoother than what I made. Thanks a lot! I'll try this one as well!
