Irrelevant and distant sections in plans

3 ANTWORTEN 3
Antworten
Nachricht 1 von 4
Anonymous
565 Aufrufe, 3 Antworten

Irrelevant and distant sections in plans

I have a lot of views where sections that are completely irrelevant an far away from my plan are showing. We hide these manually, but they are annoying.



Do you know of a way to prevent these irrelevant sections from showing up in the first place? I don't understand why they even show up.



Thank you!




3 ANTWORTEN 3
Nachricht 2 von 4
cbcarch
als Antwort auf: Anonymous

See if Annotation Crop is checked in your View.

Cliff B. Collins
Registered Architect The Lamar Johnson Collaborative Architects-St. Louis, MO
Nachricht 3 von 4
Anonymous
als Antwort auf: cbcarch

I will check with the user!



Thanks for the quick reply!

Nachricht 4 von 4
Corsten.Au
als Antwort auf: Anonymous

Section , View Crop on Plan Views.Section , View Crop on Plan Views.



Hi..



Even if the view is cropped, and annotation crop is on...

you might see the section lines if the section ( range )

is inside the Crop view in plan..



1. one way is to drag and move it out.



2. use hide in Coarser than option for view ( applicable to Section, elevation etc)



section hide.JPG



3. You may use filter for particular view..

ex : Filter- Section name starting with " Building Section " Keep them ON.

ex : Filter - Section name starting with " Detail Section" Keep them OFF



4. If the other section is not place on any sheets ( Unreference View ) then while printing Sheets, just select

 " Hide unreferenced view tags " in Options... Revit will Ignore all unreference views and print / create clean pdf only showing

elevation / section line which are place one any sheets..

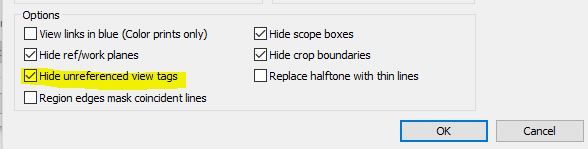

hide unreferenced.JPG

Corsten
Building Designer
