Intersecction T-shape

7 ANTWORTEN 7
GELÖST
Antworten
Nachricht 1 von 8
Marielen_
536 Aufrufe, 7 Antworten

Intersecction T-shape

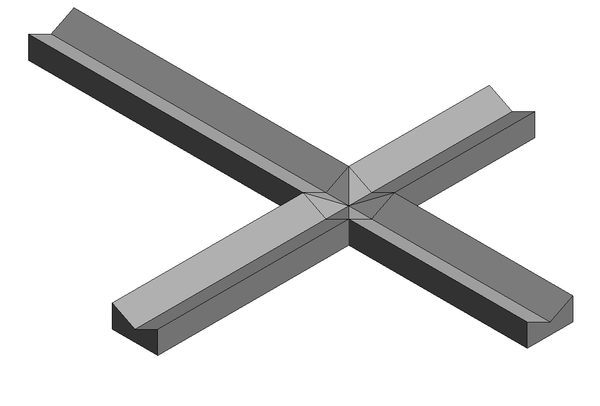

I need to draw this intersection without the circled part in blue, that is, a T-shaped intersection. Until then it was designed with a metric profile family, when together the points form a unilateral corner.divisa canaleta1.PNG

7 ANTWORTEN 7
Nachricht 2 von 8
barthbradley
als Antwort auf: Marielen_

Looks like you are trying to "blend" two concave shapes together.  Cut away the "excess" with a Void or two.   Post the file. Lets take a look at it.





Nachricht 3 von 8
Marielen_
als Antwort auf: barthbradley

I cannot post the project file, but I send the file with the specific part.
I didn't understand what VOID would be. Was it the molding of a void on the spot?

Nachricht 4 von 8
barthbradley
als Antwort auf: Marielen_

Create In-Place Component Voids to cut away the overlapping geometry.  Are you familiar with how to do that?



BTW, are these Slab Edges suppose to be Cable Trays?  Just curious.








Nachricht 5 von 8
Marielen_
als Antwort auf: barthbradley

if that's what I'm thinking, I modeled it on the spot as a vacuum extrusion and it didn't work. As you did? could you send me the file please? This structure is for rainwater drainage, but the concept you mentioned is similar.

Nachricht 6 von 8
barthbradley
als Antwort auf: Marielen_

The two In-Place Component Voids are named "Generic Models bb1" and "Generic Models bb2". They are under the Generic Model Category in the Project Browser.



Good luck.




Nachricht 7 von 8
barthbradley
als Antwort auf: Marielen_

2019 attached.



BTW: Void Sweeps were created using "Canaleta(bb)" Profile Family.

Nachricht 8 von 8
Marielen_
als Antwort auf: barthbradley

I got it because of your help. Thank you!
