In Dimension text 1/2" or 3/4" size is large ...i want it small just like autocad dimension...

7 ANTWORTEN 7
Antworten
Nachricht 1 von 8
rajashazo
532 Aufrufe, 7 Antworten

In Dimension text 1/2" or 3/4" size is large ...i want it small just like autocad dimension...


7 ANTWORTEN 7
Nachricht 2 von 8
Alfredo_Medina
als Antwort auf: rajashazo

Can you please compose your question in a better way? It's not clear.


Alfredo Medina _________________________________________________________________ ______
Licensed Architect (Florida) | Freelance Instructor | Profile on Linkedin
Nachricht 3 von 8
rajashazo
als Antwort auf: Alfredo_Medina

plz find the attached file...hope u understand it
Nachricht 4 von 8
RSomppi
als Antwort auf: rajashazo

You can assign a different text size to your dimension type just like you can in AutoCAD. Alternatively, you make a new type if the large size is desired and used elsewhere. A common text size for dimensions is 3/32".

Nachricht 5 von 8
ToanDN
als Antwort auf: rajashazo

Edit: I think you want fraction numbers to be smaller than regular numbers.  That is not possible in Revit.



Disregard this if the above is what you meant:  Write some letters on paper at 1/2" and 3/4" height and you will see they are obviously very large for typical architectural drawings.   Use a smaller text size for your dimension (i.e. 3/32", 7/64", or 1/8").

Nachricht 6 von 8
azad.Nanva
als Antwort auf: rajashazo

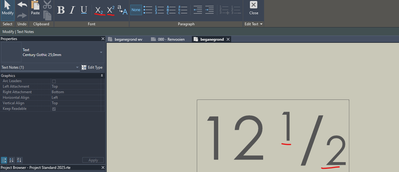

do you mean :


or not?

If it solves your problem, please click Accept to enhance the Forum.
Nachricht 7 von 8
rajashazo
als Antwort auf: azad.Nanva

yes sir u pick my point..

Nachricht 8 von 8
azad.Nanva
als Antwort auf: rajashazo

Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.

If it solves your problem, please click Accept to enhance the Forum.
