How to snap Generic Family Volume model to floor

Hi everyone!



I have created a simple generic family of a box that has three parameters, width, length, and height. All parameters are instance parameters. When I place the family inside a project with a grid, I can snap the edges of the box in plan view to grid lines. However, when I want to snap the vertical bounds to the floor line above it, it doesn't allow me to. Does anyone know why?



Thanks in advance!





Jeroen

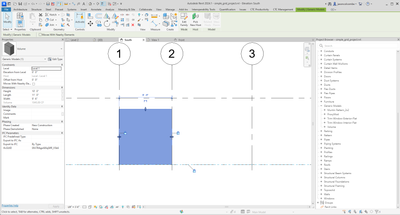

Here the volume in elevation view, I can't snap it to the next level.




7 ANTWORTEN 7
Nachricht 2 von 8
ralphdenhaan
als Antwort auf: jeroenvanlithWWCBG

Hi,



You have to change the bottom constraint of the height parameter. Attach it to the bottom reference plane instead of level.




Select Accept as Solution and Likes are always welcome.


Ralph den Haan, (Lazy) BIM Specialist


LinkedIn | LazyBIM Blog




Nachricht 3 von 8
jay_colcombe
als Antwort auf: jeroenvanlithWWCBG

It's because the Height constraint is associated to the Level Reference and not the Reference Plane!

Edit the witness Line > deselect the Level Reference > Tab Select the Reference Plane








Jay Colcombe

Autodesk Certified Instructor
Revit Architecture & Structure Certified Professional
AutoCAD Certified Professional
B.Sc. Hons Civil & Structural Engineering

If you find my post interesting, feel free to give a Kudo.
If it solves your problem, please click Accept to enhance the Forum.
Nachricht 4 von 8

Thanks for your quick response Jay, that works!

Nachricht 5 von 8
ralphdenhaan
als Antwort auf: jeroenvanlithWWCBG

It's exactly the same solution I gave you XD.

Select Accept as Solution and Likes are always welcome.


Ralph den Haan, (Lazy) BIM Specialist


LinkedIn | LazyBIM Blog




Nachricht 6 von 8
jeroenvanlithWWCBG
als Antwort auf: ralphdenhaan

Hi Ralph, sorry to forget you, I only saw the post of Jay before, but thanks as well! Appreciate everyone being fast AF!
Nachricht 7 von 8
ralphdenhaan
als Antwort auf: jeroenvanlithWWCBG

Haha, no need to worry! @jay_colcombe provided a step-by-step explanation, which makes it easier to understand.

Select Accept as Solution and Likes are always welcome.


Ralph den Haan, (Lazy) BIM Specialist


LinkedIn | LazyBIM Blog




Nachricht 8 von 8
jay_colcombe
als Antwort auf: ralphdenhaan

@ralphdenhaan I picked up the post with no replies only saw yours when mine posted so there must have been a lag somewhere on the forum otherwise i would have accepted your solution.
