How to place beams on columns with corbels?

3 ANTWORTEN 3
GELÖST
Antworten
Nachricht 1 von 4
blank...
367 Aufrufe, 3 Antworten

How to place beams on columns with corbels?

How do you place beams to go all the way to the column when columns have corbels?

Out of the box Revit families, "Concrete - Rectangular Beam" and "Precast Column - Rectangular - Single Layer Corbels".



It goes up to the corbels but I can't get it to go up to the column it self.

I thought I'll just manually "stretch" it, but cutback property is also missing for the beams.






3 ANTWORTEN 3
Nachricht 2 von 4
ToanDN
als Antwort auf: blank...

Disallow join the beam and grip stretch it manually.

Nachricht 3 von 4
alan.johnson7YLND
als Antwort auf: blank...

I would try loading in a precast beam, that will give you the end shape handles.

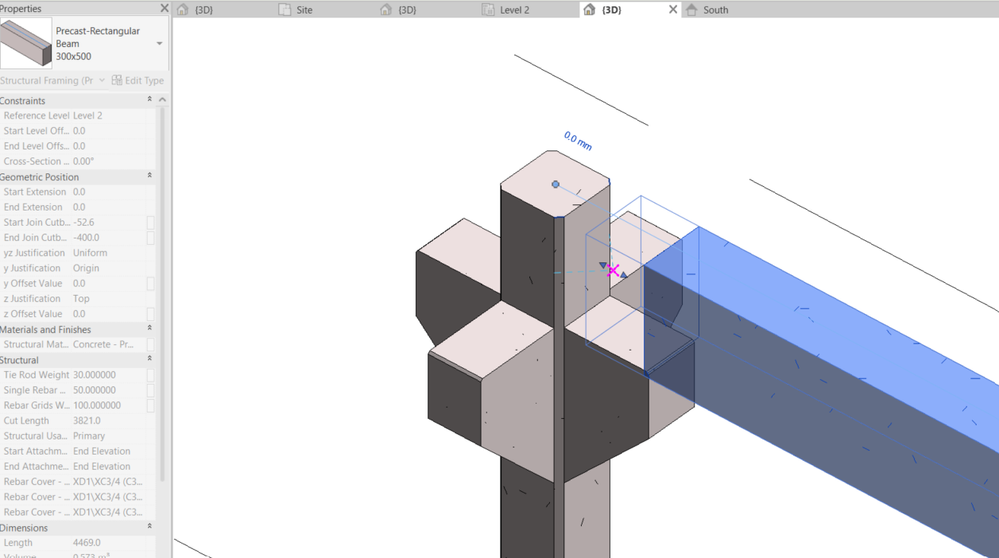

rvt precast beam.png

Nachricht 4 von 4
blank...
als Antwort auf: ToanDN


@ToanDN wrote:

Disallow join the beam and grip stretch it manually.


There I go, overcomplicating again. Thanks!
