how to make stair middle suport

13 ANTWORTEN 13
GELÖST
Antworten
Nachricht 1 von 14
BIM_Dreamer
3028 Aufrufe, 13 Antworten

how to make stair middle suport

how to make stair middle support under the thread/step. thank you.





13 ANTWORTEN 13
Nachricht 2 von 14
Anonymous
als Antwort auf: BIM_Dreamer

Switch on the middle support.

Nachricht 3 von 14
BIM_Dreamer
als Antwort auf: Anonymous

That is already a middle support. My question is how to make the middle support to be underside of the steps. Thanks

Nachricht 4 von 14
ToanDN
als Antwort auf: BIM_Dreamer

Use a carriage type for the mid suppport.
Nachricht 5 von 14
barthbradley
als Antwort auf: BIM_Dreamer

Look to me like the Tread Profile is the problem (e.g. drawn incorrectly in relationship the Origin Ref. Plane).  Does it happen like this when you use the Default Profile?

Nachricht 6 von 14
ToanDN
als Antwort auf: BIM_Dreamer

Like this?



Annotation 2019-09-27 162437.png

Nachricht 7 von 14
barthbradley
als Antwort auf: BIM_Dreamer

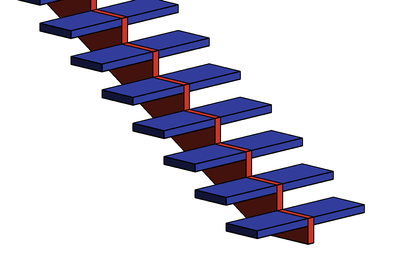

Does your screenshot depict what you are trying to achieve? Looks like you want the top of stringer on the same plane as the top of the treads.  In other words, the treads would be fastened to the side of the stringer as shown.



Stair Mid.png

Nachricht 8 von 14
BIM_Dreamer
als Antwort auf: ToanDN

it's already used carriage. thank you




Nachricht 9 von 14
BIM_Dreamer
als Antwort auf: BIM_Dreamer

managed to get the stringer to underside of steps by editing the tread profile moving above the reference line. thank you


Nachricht 10 von 14
BIM_Dreamer
als Antwort auf: ToanDN

don't mind to share with this configuration. thank you




Nachricht 11 von 14
ToanDN
als Antwort auf: BIM_Dreamer

The top of tread profile is on the reference line. The tread thickness under the stair run configuration is set to equal to the height of the tread profile. The carriage will match to the bottom the treads automatically.
Nachricht 12 von 14
BIM_Dreamer
als Antwort auf: ToanDN

don't mind to show me where is it, because right not now the stringer and steps don't align each other i have still 1mm gap. thanks




Nachricht 13 von 14
zeynep3KLJ6
als Antwort auf: BIM_Dreamer

This is great! How about the stair landing support?

Stair landing support.PNG

Nachricht 14 von 14
ToanDN
als Antwort auf: zeynep3KLJ6


@zeynep3KLJ6 wrote:

This is great! How about the stair landing support?




Model in place or beams.
