how to make a vertically curve face while 4 sides can be twisted? (adaptive components)

17 ANTWORTEN 17
GELÖST
Antworten
Nachricht 1 von 18
heichan88
752 Aufrufe, 17 Antworten

how to make a vertically curve face while 4 sides can be twisted? (adaptive components)



 Hello,

I posted previously  the same question but made propromise before, but now cannot avoid that, so sorry I have to repost it and make it solved now:

There is a vertically curved adaptive object , its face has vertically curved face, meanwhile its 3 sides points has to be adopted. (some like a twistable suspension, but they are repated production componens).

I made this vertical curve but it extrude horizontally (i think this curve is deems on a vertical workplane so it extrude horizontally).

I tried many ways and search many tutorials but no solution found (a vertically curved face with 4 sides adaptive)

Please advice Thanks




17 ANTWORTEN 17
Nachricht 2 von 18
ToanDN
als Antwort auf: heichan88

Create a profile by a nest generic family set to always vertical.

Nachricht 3 von 18
heichan88
als Antwort auf: ToanDN

Hello ToanDN

Your suggestion is exactly what I made  compromise before as in the previous post. But Now  the requirement is: cannot "always vertical", but the end two points is requested to be "adaptive and twisted along an other edge curve", (meanwhile the joist itself is vertically curve also.

Please advice

Thanks





Nachricht 4 von 18
ToanDN
als Antwort auf: heichan88

What the heck is a "vertical curve face" then?  Can you draw a plan and 2 elevations?

Nachricht 5 von 18
heichan88
als Antwort auf: ToanDN

Hello,  ToanDN

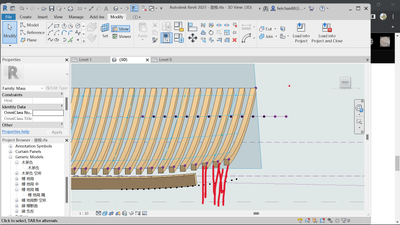

This is the side elevation.


 Then the end is requested not vertical. but should follow another edge curve


 Thanks

Nachricht 6 von 18
RDAOU
als Antwort auf: heichan88

If you set the profile to always vertical, you might be able to loft it; however, when flexing and if the curvature is nasty compared to the thickness of the profile, Revit will throw at you the error "Unable to create form" or "Form self intersects"



If you want a vertical cut at the ends, you have 2 options

  1. Either Loft the profile along the curve then cut it with voids hosted at the end/placement nodes
  2. OR (Instead of lofting a profile along the curve)
    • Use a 1 Point adaptive family for the profile - Global Z then Host xy (nested)
    • Divide the curve
    • Host the adaptive profile on 1 point
    • Use repeaters
    • Break >> select all >> create form

Adaptive Profiles.gif

Apart from the above... I am curious, why 3 adaptive placement points? if that is intended to twist/twirl the planks of that foot bridge, it wont work.







YOUTUBE | BIM | COMPUTATIONAL DESIGN | PARAMETRIC DESIGN | GENERATIVE DESIGN | VISUAL PROGRAMMING
If you find this reply helpful kindly hit the LIKE BUTTON and if applicable please ACCEPT AS SOLUTION


Nachricht 7 von 18
heichan88
als Antwort auf: RDAOU

Hello RDAOU

3 points: the front two points is to fit the edge curve, keeping the end face twisted along the edge curve.

For other points, let me study and try ...

Many Thanks



Nachricht 8 von 18
RDAOU
als Antwort auf: heichan88

@heichan88



I dont know... it looks odd to me. Try repeaters there is a GIF uploaded to previous reply





YOUTUBE | BIM | COMPUTATIONAL DESIGN | PARAMETRIC DESIGN | GENERATIVE DESIGN | VISUAL PROGRAMMING
If you find this reply helpful kindly hit the LIKE BUTTON and if applicable please ACCEPT AS SOLUTION


Nachricht 9 von 18
heichan88
als Antwort auf: RDAOU


 I will try your above GIF for other horizontal joist.

And this post is for vertical joists with gap between, see below picture (except that the end face is still vertical which is not what is requested to tweist along with the edge curve)



Yes it is tricky request from 3D printing team (a workshop to print the whole building not just a component). and Revit are almost aooriaching  the ultimate target... I had tried other sotware eg ARCD etc but halt at mid way...

Nachricht 10 von 18
ToanDN
als Antwort auf: heichan88

You want something like this/?






Nachricht 11 von 18
heichan88
als Antwort auf: ToanDN

Yes as long as the end face align with the edge curve , not vertical(ie 2 points snap to the edge curve)

Many Thanks


Nachricht 12 von 18
ToanDN
als Antwort auf: heichan88


@heichan88 wrote:

Yes as long as the end face align with the edge curve , not vertical(ie 2 points snap to the edge curve)

Many Thanks



So the only vertical are the 2 end faces? If so, just create a normal adaptive sweep with 3 adaptive points, then place 2 vertical voids to cut the ends.

Nachricht 13 von 18
ToanDN
als Antwort auf: heichan88

How about these?  They are identical except for the end faces.






Nachricht 14 von 18
heichan88
als Antwort auf: ToanDN

wow, amazing, I am trying as per that

BTW could you show how to place the 9 APs in the malify grid?

many thanks!

Nachricht 15 von 18
ToanDN
als Antwort auf: heichan88


@heichan88 wrote:

wow, amazing, I am trying as per that

BTW could you show how to place the 9 APs in the malify grid?

many thanks!


Turn on Nodes.















I use 9 points so that the Repeater can place the beam with a gap.




There was some error after Repeater so I has to remove the faulty ones, placed a beam on the other end and repeat again, then deleted a few overlapping.  The error is dependant on the curvature of the surface so you may or may not get it.















Nachricht 16 von 18
ToanDN
als Antwort auf: heichan88

You only need 7 adative points, 6 to drive the geometry of the beam and 1 to create the gap.  9 as Shown earlier is unnecessary.






Nachricht 17 von 18
heichan88
als Antwort auf: ToanDN

totally got it,

BTW, my one mass surface will be used for several 3-4 U-V grid systems (tile, joist, sheet etc), but seems there is no subcategory to seperate VG of these U-V sets based on one same mass surface, any advice?

Thanks

Nachricht 18 von 18
ToanDN
als Antwort auf: heichan88

Create one mass with a form, nest it in another blank mass and create divided surface, repeat for as many a a you need.
