How to Make a 3D section view with two section box cuts

3 ANTWORTEN 3
GELÖST
Antworten
Nachricht 1 von 4
sstattelman4GLLM
6475 Aufrufe, 3 Antworten

How to Make a 3D section view with two section box cuts

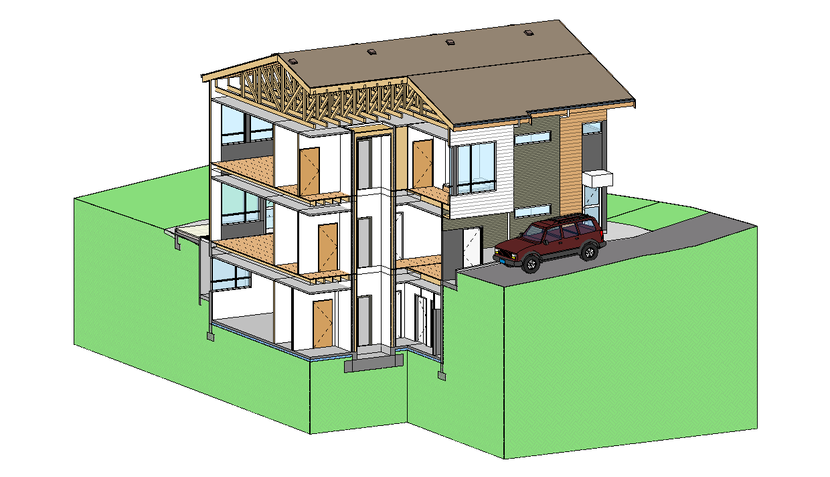

Basically the title says what I am trying to do. Instead of having just one section box I am trying to use two section boxes in one 3D perspective, but can't figure out how in Revit. I'll attach a picture just for clarity's sake. My terribly drawn blue line is where I would like the other section box.

3 ANTWORTEN 3
Nachricht 2 von 4
syman2000
als Antwort auf: sstattelman4GLLM

You have to create two separate 3d view. One cut one side and the other cut the other side. Once you have to them both cut, you merge it in the sheet view.



two views.pngcombine.png

Check out my Revit youtube channel - https://www.youtube.com/user/scourdx
Nachricht 3 von 4
mauricio_mssf
als Antwort auf: sstattelman4GLLM

Hi @sstattelman4GLLM

There is no native tool in the program to do this, but you can do that, for that you will need to duplicate a 3D view and overlay them, and create a section box for each view. Watch this video.
https://autode.sk/2FVHBDq

It looks better in realistic style because of the edges.



If the answer solves your problem, click Accept as Solution this helps other users to quickly find an answer and let a like if you liked it.

Você achou esta postagem útil? Sinta-se à vontade para curtir esta postagem.
Ficou satisfeito com a resposta à sua pergunta? Nesse caso, clique no botão ACEITAR SOLUÇÃO.


 Mauricio Santos Filho Arquiteto | BIM Manager
EESignature

Nachricht 4 von 4

Thank you all this helped a lot!
