Hello,
I need two slopped reference "planes" at two locations with parametric angle (changeable) to place a model, (some like a slop with an object car thereon),
--- I can only draw 2 vertical/horizontal ref planes to define the angle, then the angle reference line can only be locked to "baseline center", and the other one cannot be locked
--- reference "line" is easy but cannot place an object on.
---- and I don't want adaptive family now to avoid complexity,
any advice on how to lock an angled reference Plane?
Thanks
Gelöst! Gehe zur Lösung
Gelöst von ToanDN. Gehe zur Lösung
Gelöst von barthbradley. Gehe zur Lösung
Gelöst von ToanDN. Gehe zur Lösung
Gelöst von barthbradley. Gehe zur Lösung
I has to be a Ref. Line. Is the Family, that you are having trouble placing on it, Work Plane-Based and NOT Always Vertical?
Hello ToanDN and barthbradley
I untick the "work on work plan" and "always vertical", and also unable to pick reference line when "pick work plan".

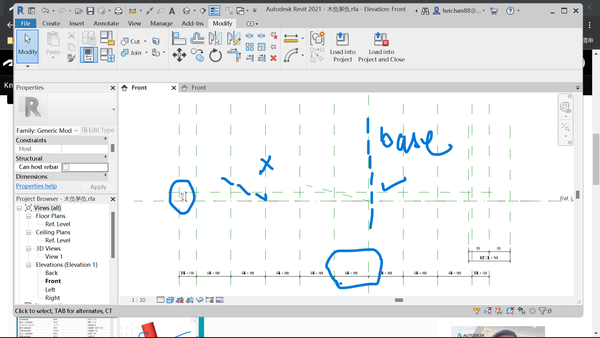

See attached rfa.
Many Thanks
Hello barthbradley
I have done by quite some compromises, such as make a model line family with a dummy box (to define the plane which reference plan in the hosted family unable to provide).... then donw.'
BTW the work plane of ref line is on Y axis, how can I rotate the plane to X? I found no "transform" or tab works in the family....
Thanks
