How to join these two seperate roofs

9 ANTWORTEN 9
Antworten
Nachricht 1 von 10
parkslanden183
620 Aufrufe, 9 Antworten

How to join these two seperate roofs

Having an issue joining these two roofs together. Keep receiving an error with the joint tool no matter where I click.



9 ANTWORTEN 9
Nachricht 2 von 10
Lachlan-JWP
als Antwort auf: parkslanden183

How do you want them to be joined? They appear to be only touching at 1 point.

Nachricht 3 von 10
parkslanden183
als Antwort auf: Lachlan-JWP

I want to join them similar to this but without the dormers







Nachricht 4 von 10
Lachlan-JWP
als Antwort auf: parkslanden183

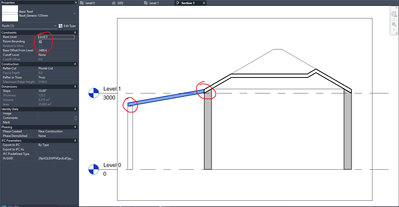

You need to change the base offset of the verandah roof. It's currently the same as the main roof which means that the top of the verandah roof is higher than the base of the main roof. Cut a section through the building and move the verandah roof down to match the main roof.









Nachricht 5 von 10
parkslanden183
als Antwort auf: Lachlan-JWP

I don't understand too well with the sections. Is it possible to see this in a 3d view?



Nachricht 6 von 10
Lachlan-JWP
als Antwort auf: parkslanden183

Here is the same thing with 3D views.



Both roofs have the same Base Offset:




The verandah roof has been moved down so that the top matches the base of the main roof:






Nachricht 7 von 10
parkslanden183
als Antwort auf: Lachlan-JWP

How do you align your roofs together to joint? I can't get the offset right.

Nachricht 8 von 10
parkslanden183
als Antwort auf: Lachlan-JWP

Oops didn't mean to reply twice

Nachricht 9 von 10
Lachlan-JWP
als Antwort auf: parkslanden183

It's easiest to do in a section view. You can just move the roof down to the height you want.

Nachricht 10 von 10
handjonathan
als Antwort auf: parkslanden183

Hi @parkslanden183

Thanks a lot for posting your question to the forums!   Has the solution suggested by @Lachlan-JWP helped with your issue?

We look forward to hearing back from you with more information so we can help you as a community! 



Jonathan Hand


Industry Community Manager | AEC (Architecture & Building)
