How to cut toposurface with wall

6 ANTWORTEN 6
GELÖST
Antworten
Nachricht 1 von 7
HeadbuttJ
1671 Aufrufe, 6 Antworten

How to cut toposurface with wall

I created a pillbox and a toposurface. I would like to make half of the pillbox constructed inside a hill. How can I cut out the toposurface so that it willt not fill inside the pillbox?



  

6 ANTWORTEN 6
Nachricht 2 von 7
L.Maas
als Antwort auf: HeadbuttJ

You would use the tools on the Massing & Site ribbon. There you can use tool like building pads and/or split surface to modify your toposurface

Louis

EESignature

Please mention Revit version, especially when uploading Revit files.

Nachricht 3 von 7
barthbradley
als Antwort auf: HeadbuttJ

you can use the Building Pad Tool to cut away a portion of the Toposurface.

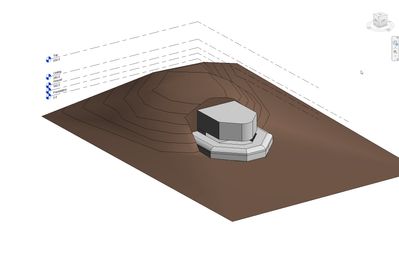

Pill Box 3.jpgPill Box 4.jpg



...then cover with a Shape-Edited Floor or Roof which uses the same material as the Toposurface.

Nachricht 4 von 7
HeadbuttJ
als Antwort auf: barthbradley

But if I use the building pad, the toposurface behind the model will become striaght flat which is what I do not want. I want the pillbox to be naturally embedded inside the hill. Dont know if you understand, quite hard to describe in words...

Nachricht 5 von 7
barthbradley
als Antwort auf: HeadbuttJ

Did you read all of what I posted?  I think you missed the last part.

Nachricht 6 von 7
martijn_pater
als Antwort auf: HeadbuttJ

In addition to the above try a forum search for toposurface + tunnel/tunneling or maybe have a look HERE.

Nachricht 7 von 7
smartplans
als Antwort auf: HeadbuttJ

I have created a foundation wall where the concrete footing is a sweep. This does not cut the toposurface!
