How to cut out forms in Group family roof?

13 ANTWORTEN 13
GELÖST
Antworten
Nachricht 1 von 14
cadedu22
1291 Aufrufe, 13 Antworten

How to cut out forms in Group family roof?

Greetings,



Is it possible to cut out forms like that, without breaking "roof group family"?



Roof Cutting-01.png

I tried "Void forms" but they are not making any cuts?



roof Cutting with void form-01.png



13 ANTWORTEN 13
Nachricht 2 von 14
barthbradley
als Antwort auf: cadedu22

Instead of doing you Roof Cladding as a loadable family, you can do the same thing even better in the Project as a Sloped Glazing Roof.

Nachricht 3 von 14
cadedu22
als Antwort auf: barthbradley

I checked "Sloped Glazing Roof", as i looked in tutorials it's not what I'm looking for, since i have all roof structure already made, I need only make cuttings in roof.

Thanks for recommendation tho.



ps I'm using pre made roof because it has all documentations and structural schemes.



Nachricht 4 von 14
ToanDN
als Antwort auf: cadedu22

Don't have Revit at the moment so I can't see your file.



1. If it is a generic model family the use another generic model family with solid, not void, to cut it using cut geometry, or join geometry and hide the other.



2. If it is another category family, add the void directly in the family and use dimension parameters to locate/size the void to cut or not cut the solid. Meaning, if the void intersects the solid then it cuts, if the void is outside of the solid then it doesn't cut.



3. In the long run, it is better to use roof tool in project instead of a family and you have a host of modifier tools to work with such as former, opening by face, vertical opening, shaft, roof join.

Nachricht 5 von 14
barthbradley
als Antwort auf: cadedu22

Well, might be worth reconsidering. Consider the BIM value too.







Sloped Glazng 1.pngSloped Glazng 2.pngSloped Glazng 4.pngSloped Glazng 3.png

Sloped Glazng 5.png

Nachricht 6 von 14
RDAOU
als Antwort auf: cadedu22

@cadedu22





You only need a Void ... modeled in a Face based generic Model

For the added BIM Value and if quantification is required...you can set the nested standing seam panels to shared ... then you can schedule their quantities and dimensions (assuming that the latter are shared parameters)



Cut Family.gif





An Alternative method you can use without Voids or cuts or shared families is Convert the Standing Seam Roof Generic Model Family to Parts ... This will allow you to

  1. Treat each panel individually using Shape handles
  2. Splitting and excluding parts of the panel at the intersections with walls
  3. Quantify the panels using Parts schedule
  4. Get the cut pieces measurements from the excluded parts

See GIF below:

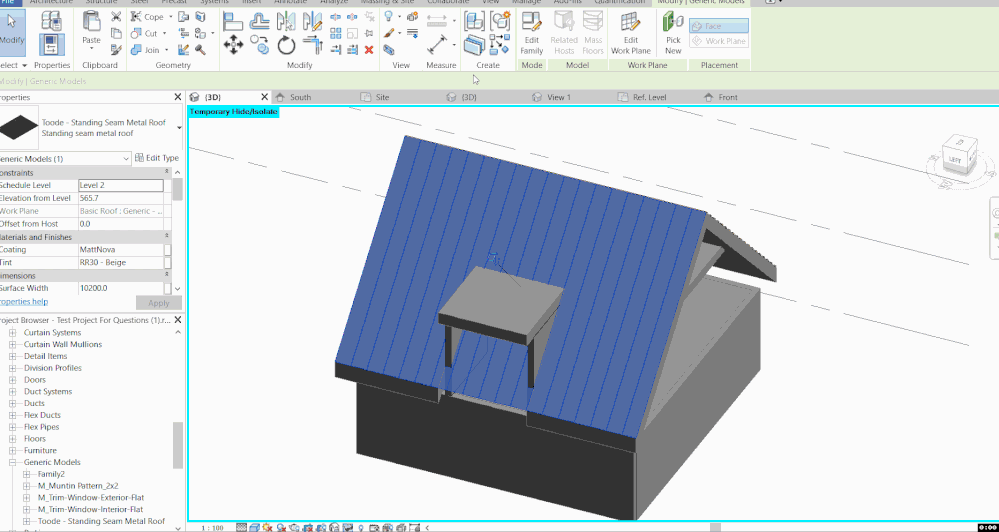

Cut Family Parts.gif

YOUTUBE | BIM | COMPUTATIONAL DESIGN | PARAMETRIC DESIGN | GENERATIVE DESIGN | VISUAL PROGRAMMING
If you find this reply helpful kindly hit the LIKE BUTTON and if applicable please ACCEPT AS SOLUTION


Nachricht 7 von 14
cadedu22
als Antwort auf: RDAOU

Hello,

Yes that's 2nd solution is what I was looking for for this roof.

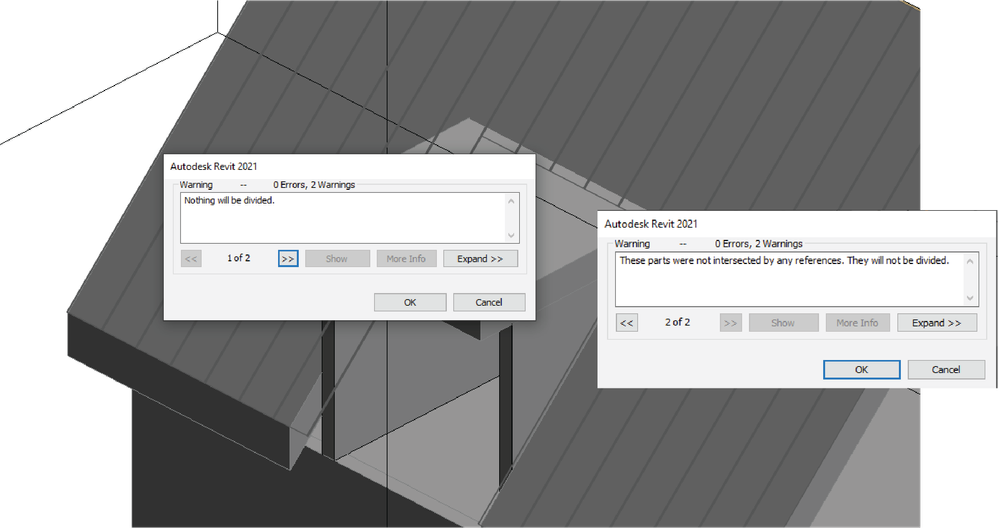

I don't understand why I can't "Divide parts", what I'm missing?

And will be there a way to group them back together later?




Nachricht 8 von 14
cadedu22
als Antwort auf: barthbradley

There are not much tutorials about "Sloped Glazing", but anyways will look into it for future CAD functional.

Nachricht 9 von 14
RDAOU
als Antwort auf: cadedu22

@cadedu22



  1. Make sure the right workplane is set (the Standing Seam plane)
  2. (On the outer side) Pick the edge of the wall from the outside
  3. (On the inner side ) Pick the inner side of the SS Panel then drag the sketch line slightly outside the panel
  4. At the top Pick the edge of the Panels you dragged up
  5. the bottom simply pick the edge of the panel and drag the sketch slightly outside the panel
  6. connect the ends around the wall using pick line

When the division is done properly you will see the sketch lines turn green when you exit sketch mode



Cut Family Parts 1.gif



Do not group them,,, Once done >> Isolate category >> select all except the excluded parts and Assemble them See GIF below



Cut Family Parts 2.gif

YOUTUBE | BIM | COMPUTATIONAL DESIGN | PARAMETRIC DESIGN | GENERATIVE DESIGN | VISUAL PROGRAMMING
If you find this reply helpful kindly hit the LIKE BUTTON and if applicable please ACCEPT AS SOLUTION


Nachricht 10 von 14
barthbradley
als Antwort auf: cadedu22

Divide Parts at Intersecting Level and then Exclude Parts to remove the ones at the opening.



Divide and exclude.png

Nachricht 11 von 14
cadedu22
als Antwort auf: RDAOU

I just noticed it's only making changes to roof made in certain view, if it was edited in 3D then changes only applies to certain 3D view?

That's how it's supposed to work?

I need to edit every view?

Nachricht 12 von 14
RDAOU
als Antwort auf: cadedu22

@cadedu22



Yes ...On the view properties palette select show parts. That is how parts work...it is a view mode, you do not edit every view, you set up a view template for those views where you need to show parts...














YOUTUBE | BIM | COMPUTATIONAL DESIGN | PARAMETRIC DESIGN | GENERATIVE DESIGN | VISUAL PROGRAMMING
If you find this reply helpful kindly hit the LIKE BUTTON and if applicable please ACCEPT AS SOLUTION


Nachricht 13 von 14
cadedu22
als Antwort auf: barthbradley

Yes, I didn't notice that some how my "Constraints" base level was not Associated, I set it to any level to match warplane, and it's fixed allMissing.png

Nachricht 14 von 14
cadedu22
als Antwort auf: cadedu22

@barthbradley

@RDAOU

@ToanDN

This was kind long solution question. Thank you guys for advices and help.

*Ordered Solutions by steps, for not missing anything
