How to Create Sectional view of an assembly

13 ANTWORTEN 13
GELÖST
Antworten
Nachricht 1 von 14
shuaib009
707 Aufrufe, 13 Antworten

How to Create Sectional view of an assembly

Hi All,

I am able to to create all other views of assembly except Sections.

Seems I am missing some step to get desired result.
If anyone knows a right tutorial video/knowledge about this, Kindly shed some light on this.

Thank you.

13 ANTWORTEN 13
Nachricht 2 von 14
ennujozlagam
als Antwort auf: shuaib009

when you create a assembly views there are automatic views,?thanks






Remember : without the difficult times in your LIFE, you wouldn't be who you are today. Be grateful for the good and the bad. ANGER doesn't solve anything. It builds nothing, but it can destroy everything...
Please mark this response as "Accept as Solution" if it answers your question. Kudos gladly accepted.
Nachricht 3 von 14
shuaib009
als Antwort auf: ennujozlagam

yes, I have done that for other views & its working fine. But, its not working for Section.

how to control the section plane in these options?



I need a section cut horizontally to the column (as shown below), but I get  vertical section as default.

Hope my explanation clear to you. thanks.






Nachricht 4 von 14
ennujozlagam
als Antwort auf: shuaib009

can post part of it so we can check?thanks





Remember : without the difficult times in your LIFE, you wouldn't be who you are today. Be grateful for the good and the bad. ANGER doesn't solve anything. It builds nothing, but it can destroy everything...
Please mark this response as "Accept as Solution" if it answers your question. Kudos gladly accepted.
Nachricht 5 von 14
shuaib009
als Antwort auf: ennujozlagam

Can I know, which part you are looking for? is it part of drawing or the screen shots of commands/option.



Nachricht 6 von 14
ennujozlagam
als Antwort auf: shuaib009

your drawing that posted?txs





Remember : without the difficult times in your LIFE, you wouldn't be who you are today. Be grateful for the good and the bad. ANGER doesn't solve anything. It builds nothing, but it can destroy everything...
Please mark this response as "Accept as Solution" if it answers your question. Kudos gladly accepted.
Nachricht 7 von 14
shuaib009
als Antwort auf: shuaib009

I want to make horizontal section across column, but not able to do using present "create assembly view" option!










Nachricht 8 von 14
ennujozlagam
als Antwort auf: shuaib009

that is the reason i need your revit file to post here, so that we can check . it is difficult to check by just looking in your screenshot post. thanks





Remember : without the difficult times in your LIFE, you wouldn't be who you are today. Be grateful for the good and the bad. ANGER doesn't solve anything. It builds nothing, but it can destroy everything...
Please mark this response as "Accept as Solution" if it answers your question. Kudos gladly accepted.
Nachricht 9 von 14
shuaib009
als Antwort auf: ennujozlagam

OK. attaching the file. Let me know what can be done....

I am not attaching full project file since its very huge...



Nachricht 10 von 14
syman2000
als Antwort auf: shuaib009

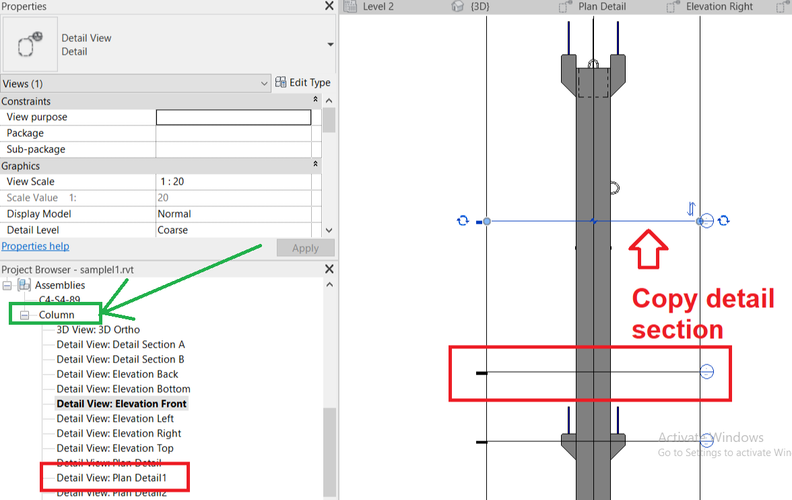

I am curious have you try copying the existing detail section and place them at the upper column. It seems to keep the detail view as assembly.



copy detail section.png

Check out my Revit youtube channel - https://www.youtube.com/user/scourdx
Nachricht 11 von 14
shuaib009
als Antwort auf: shuaib009

hey, thanks. But how you are able to get this  (highlighted in green)

Usually after I choose "Create Assembly Views..." I get all selected views under element ID!




I get like this! what can I do?








Nachricht 12 von 14
ennujozlagam
als Antwort auf: shuaib009

check here









Remember : without the difficult times in your LIFE, you wouldn't be who you are today. Be grateful for the good and the bad. ANGER doesn't solve anything. It builds nothing, but it can destroy everything...
Please mark this response as "Accept as Solution" if it answers your question. Kudos gladly accepted.
Nachricht 13 von 14
shuaib009
als Antwort auf: shuaib009

@ennujozlagam Respect & salutes for you. As I see this is your 1000th solution in the forum. What a awesome way to complete the milestone. Congratulation :trophäe::trophäe::trophäe:.



Thanks for being my mentor.



@Tiana_Y @amanda.k @natasha.l Kindly take note of  this contributions of  @ennujozlagam  & felicitate for the same.

Nachricht 14 von 14
ennujozlagam
als Antwort auf: shuaib009

thank you. god bless :zwinkerndes_Gesicht:





Remember : without the difficult times in your LIFE, you wouldn't be who you are today. Be grateful for the good and the bad. ANGER doesn't solve anything. It builds nothing, but it can destroy everything...
Please mark this response as "Accept as Solution" if it answers your question. Kudos gladly accepted.
