How to create custom balustrades and handrails?

6 ANTWORTEN 6
Antworten
Nachricht 1 von 7
Anonymous
1461 Aufrufe, 6 Antworten

How to create custom balustrades and handrails?

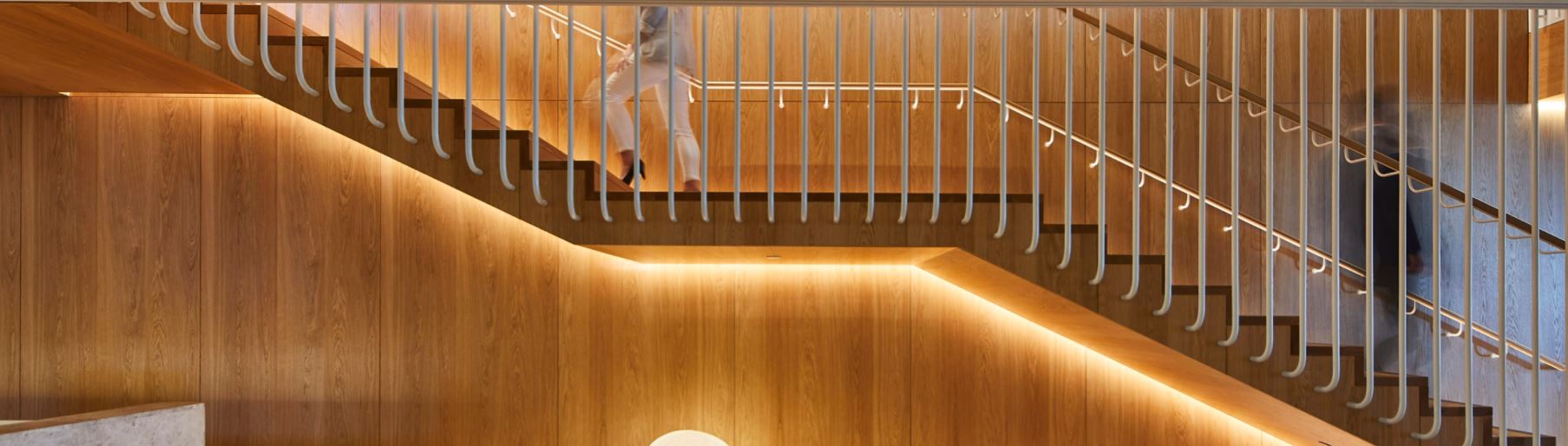

I am trying to recreate this stair balustrade and handrail combination in revit. (see the images attached)

In particular how it curves and attaches to the stair and how the handrail is attached.

How would I achieve this?

Beschriftungen (8)
6 ANTWORTEN 6
Nachricht 2 von 7
martijn_pater
als Antwort auf: Anonymous

You should be able to get there using a custom baluster with edited toprail...

Something like this?

Nachricht 3 von 7
Mohamed-Nassar
als Antwort auf: Anonymous

This Session will help you more for this Sir

https://www.autodesk.com/autodesk-university/class/Handrail-Hacks-2016

----------------------------------------------------------------------------------
If the above reply answers your question; Please mark it with ACCEPT SOLUTION
----------------------------------------------------------------------------------

Mohamed Nassar , ACP, Autodesk Ambassador Gold
BIM Support / Structure Modeler
Nachricht 4 von 7
martijn_pater
als Antwort auf: Mohamed-Nassar

@Mohamed-Nassar Nice addition, worth watching. Actually I also did use one trick there which is not as easy to reconstruct from the example which is to go into sketch edit mode and set it to flat with customize height... another to tab select the top rail and edit it, the baluster family is relatively straight-forward I think.

Don't know what it needs to be at the top tbh, anyway you could always use multiple railings i.e.

Nachricht 5 von 7
bin
Advisor
als Antwort auf: martijn_pater

@martijn_pater can you tell me why the top rail is much higher than the setting(900mm)?

Thanks very much.

Nachricht 6 von 7
martijn_pater
als Antwort auf: bin


@bin wrote:

@martijn_pater can you tell me why the top rail is much higher than the setting(900mm)?

Thanks very much.


It does not follow the host stair because of the edited railing sketch (which is set to flat with custom height).

Nachricht 7 von 7
bin
Advisor
als Antwort auf: martijn_pater

@martijn_pater It took me an hour trying to find it in the Edit Rail. This can be useful.

Thank you again. :leicht_lächelndes_Gesicht:
