how to calculate footings formwork?

10 ANTWORTEN 10
Antworten
Nachricht 1 von 11
Anonymous
3004 Aufrufe, 10 Antworten

how to calculate footings formwork?

My question is how to calculate with Revit formwork areas for footings.

thank you!

10 ANTWORTEN 10
Nachricht 2 von 11
Ilic.Andrej
als Antwort auf: Anonymous

Depends what you need. If you need the total area (vertical surfaces), you could model the formwork before you calculate it. It could be some simple parametric line-based family.



Andrej Ilić

phonetical: ændreɪ ilich
MSc Arch

Autodesk Expert Elite Alumni

Nachricht 3 von 11
constantin.stroescu
als Antwort auf: Anonymous

use  Calculated Parameter Fields:

  • 2*(L+W)*T   for Column foundations
  • and 2*W*T for Wall foundations
  • use Filter to isolate Wall and Column foundations

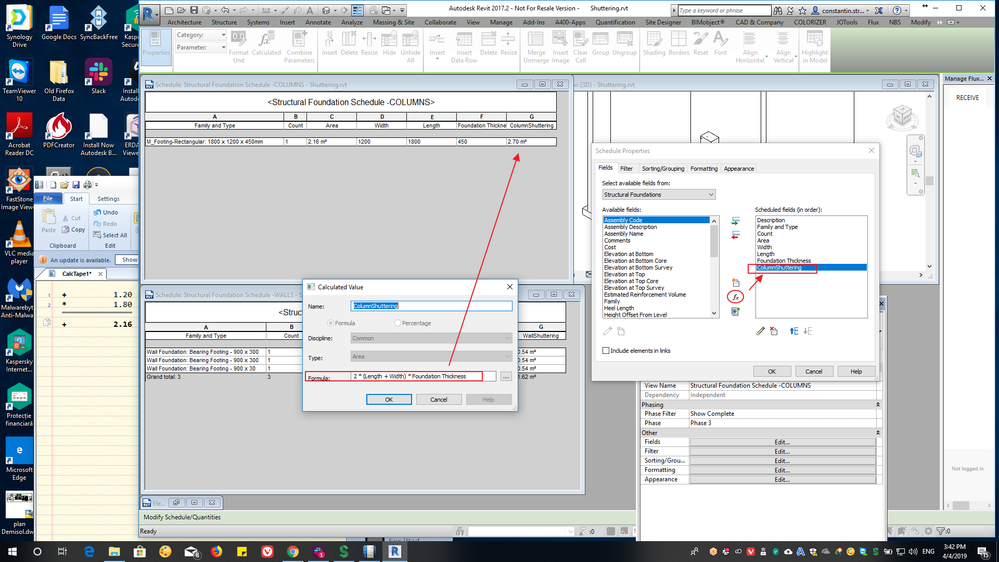

  • have a look at the attached file

Image 1.png



Image 2.png

Constantin Stroescu

EESignature

Nachricht 4 von 11
Anonymous
als Antwort auf: Ilic.Andrej

How can we model formwork in order to calculate area for footings?

columns and walls ok, but what about footings, strip footing?

Nachricht 5 von 11
constantin.stroescu
als Antwort auf: Anonymous

Nachricht 6 von 11
Ilic.Andrej
als Antwort auf: Anonymous

I don't care if its a wall formwork, column formwoork or foundation strip formwork. I can use the same parametric line-based family to model it all. Its attached.



Btw, I wanna thank you for posting this question. Right now, I'm working in construction and maybe we are going to use this family that I built for you.






Andrej Ilić

phonetical: ændreɪ ilich
MSc Arch

Autodesk Expert Elite Alumni

Nachricht 7 von 11
Anonymous
als Antwort auf: Ilic.Andrej

You are welcome! But this library is it available online? where can I find it?

thank you so much for your help

Sorry now I noticed that you attached this .rfa. file. how can I apply it ?

Nachricht 8 von 11
Ilic.Andrej
als Antwort auf: Anonymous


@Anonymous wrote:

You are welcome! But this library is it available online? where can I find it?

thank you so much for your help

Sorry now I noticed that you attached this .rfa. file. how can I apply it ?


Just load into project (insert/load family). Create a component (Architecture Tab/Component)...Draw the line. Explore instance properties and type properties of this family.



Andrej Ilić

phonetical: ændreɪ ilich
MSc Arch

Autodesk Expert Elite Alumni

Nachricht 9 von 11
Anonymous
als Antwort auf: Ilic.Andrej

hello again, I would like to ask you that now that I used this component for formwork how can I receive the quantities from View-Schedules, in order to find the quantity in sqr.m for my take off? thank you in advance
Nachricht 10 von 11
Ilic.Andrej
als Antwort auf: Anonymous

Open type properties of the family. You will see a material parameter. Assign a new material and call it "Formwork". Create a material take-off schedule and check "Generic Models". Add these fields: material:name material:volume There s no need to add [material:area] because you would not get the area you need. [material:area] calculates all the surfaces of a generic model. This is not a floor or a wall where you would get an area of one surface. Instead of that, create a calculated value called "Area" and give it a formula: [material:volume]/50mm Input the formwork thickness of your choosing.


Andrej Ilić

phonetical: ændreɪ ilich
MSc Arch

Autodesk Expert Elite Alumni

Nachricht 11 von 11
Ilic.Andrej
als Antwort auf: Anonymous

...the family is updated. It can be used to create beam formwork as well.



Andrej Ilić

phonetical: ændreɪ ilich
MSc Arch

Autodesk Expert Elite Alumni
