How do I model this facade cladding?

2 ANTWORTEN 2
Antworten
Nachricht 1 von 3
Anonymous
1446 Aufrufe, 2 Antworten

How do I model this facade cladding?

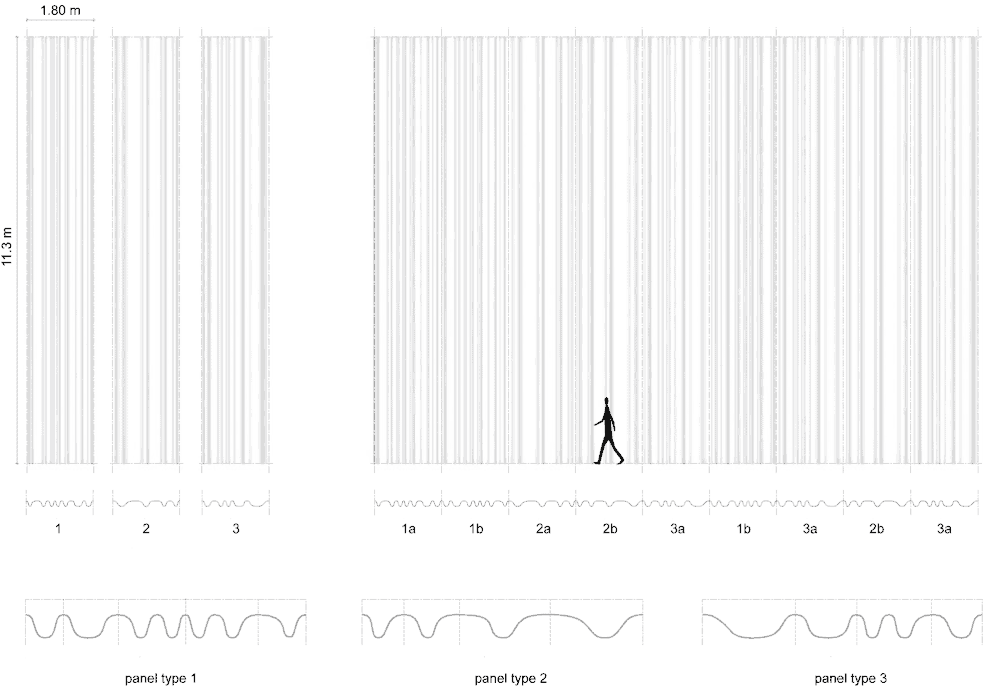

I want to model this corrugated acrylic glass cladding in revit as the exterior layer of a wall assembly.



How do I model it?



dezeen_Swiss-on-the-Vitra-Campus-by-SANAA_4.jpgVitra-Fassade-DSC_0150_578aaf1318.jpg28f3f46b41d823b037e986e27ca0b85a.gifb18f8285c6c83b402da92fd060e8ba6c.jpg

2 ANTWORTEN 2
Nachricht 2 von 3
robert.klempau
als Antwort auf: Anonymous

Hello,



This is a typical case for Dynamo.

Create the different claddings types as profiles connected to a sweeps in a cladding family.

Then you need a Dynamo script that divides the family types in a certain pattern over a line that you modeled along the wall.

Put this question also on the Dynamo forum.



https://forum.dynamobim.com/





If my post answers your question, please click the "Accept as Solution" button. This helps everyone find answers more quickly!

Kind regards,
Robert Klempau
Senior Consultant AEC
Cadac Group AEC BV

Nachricht 3 von 3
loboarch
als Antwort auf: robert.klempau

Dynamo might be overkill for this. It looks like there are 3 "panels" and then they are placed randomly and flipped randomly. You can make a curtain panel of the 3 wavy forms and then place it into a curtain wall element.  I made this one as a test. I used 1 panel, but could have just as easily used 3. Mine came out looking close to what is needed.






Jeff Hanson
Principal Content Experience Designer
Revit Help |
