How do I create different shapes on opposite sides of a model in a Family file?

2 ANTWORTEN 2
GELÖST
Antworten
Nachricht 1 von 3
jeremiah.hawlader
207 Aufrufe, 2 Antworten

How do I create different shapes on opposite sides of a model in a Family file?

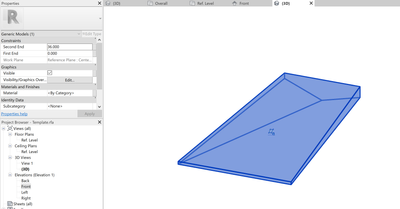

What I have so far: https://imgur.com/f5E2nsZ

What I want to do: https://imgur.com/P18TCFH

What I'm trying to follow: https://imgur.com/rSA6sRr



2 ANTWORTEN 2
Nachricht 2 von 3
syman2000
als Antwort auf: jeremiah.hawlader

I would use blend to achieve the shape you want.






Then you sketch first profile and second profile





This will blend the two profile together and it should create the shape you are looking for.












Check out my Revit youtube channel - https://www.youtube.com/user/scourdx
Nachricht 3 von 3
jeremiah.hawlader
als Antwort auf: syman2000

Thank you!
