How can I show levels on the front face of my model in 3D view

12 ANTWORTEN 12
GELÖST
Antworten
Nachricht 1 von 13
AidanHawkins
792 Aufrufe, 12 Antworten

How can I show levels on the front face of my model in 3D view


Right now my levels are shown behind the model

How can I show these to show at the front of my model like I have drawn in Red



Regards,



Aidan



12 ANTWORTEN 12
Nachricht 2 von 13
L.Maas
als Antwort auf: AidanHawkins

There is no setting for this.



The only way you can accomplish something like this is making use of model lines (or create a family for this)


The disadvantage of course, is that these are model elements so will show up in all views. Then you need to filter them out in those views were you do not want to see them. So seems a lot of complications for this.





Louis

EESignature

Please mention Revit version, especially when uploading Revit files.

Nachricht 3 von 13
AidanHawkins
als Antwort auf: L.Maas

Thanks

I am having a hard time trying to find how to turn on the visability of these model lines in VG

any ideas?





Nachricht 4 von 13
ennujozlagam
als Antwort auf: AidanHawkins

as mentioned @L.Maas no setting by now?

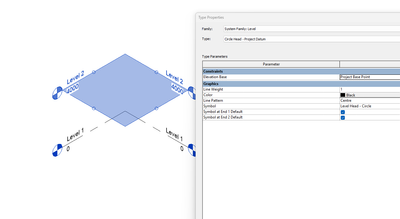

try to make a double text for your level, if it is okay with you?










Remember : without the difficult times in your LIFE, you wouldn't be who you are today. Be grateful for the good and the bad. ANGER doesn't solve anything. It builds nothing, but it can destroy everything...
Please mark this response as "Accept as Solution" if it answers your question. Kudos gladly accepted.
Nachricht 5 von 13

I'd create an in place  enveloping Mass and then Mass Floors with a custom Tag on the pinned 3d View..


Constantin Stroescu

EESignature

Nachricht 6 von 13
L.Maas
als Antwort auf: AidanHawkins

Maybe easiest to create a new linestyle (Manage > Additional Settings > Line Style), name it something like LEVELS. Set the appropriate line pattern, weight and colour.

In your views you can then deselect these lines in your VG, under Model Categories > Lines > LEVELS

Louis

EESignature

Please mention Revit version, especially when uploading Revit files.

Nachricht 7 von 13

..and , of course, you can hide the Mass , to let only the Mass Floors visible..



Constantin Stroescu

EESignature

Nachricht 8 von 13
AidanHawkins
als Antwort auf: L.Maas

Thanks for the advice

I am still stuck on trying to show lines in this 3d view

I have a view template with model category > lines , all on

but still the visibility is hidden.....



Nachricht 9 von 13
L.Maas
als Antwort auf: AidanHawkins

Attached a project (Revit 2021) with some examples.

In the 3d view you will see two times some model lines (magenta)

When you look at plan view Level 0 you will not see the line (hidden by use of VG)

When you look at plan view Level 1 you will see the line (not hidden)

For level 2 I made a generic family. You will see it is not visible in Plan view Level 2 due to setting of visible settings in the family (not visible in Plan/RCP, Front/Back and Left/Right views).

This family can also be controlled by VG or making use of filters.



Have a look at the project to understand the concepts.





Louis

EESignature

Please mention Revit version, especially when uploading Revit files.

Nachricht 10 von 13
AidanHawkins
als Antwort auf: L.Maas

Thanks for this

I understand how it works

The problem is I dont know why I can not see my model lines appear..



I have been given the warning: None of the created elements are visible in Floor Plan: Nivel 10_T View. You may want to check the active view, its Parameters, and Visibility settings, as well as any Plan Regions and their settings.



I have checked the VG settings, all lines are turned on...

I have checked the active view, the lines are drawn within the active view..

I dont understand why it wont show them



Regards

Aidan



Nachricht 11 von 13
ennujozlagam
als Antwort auf: AidanHawkins

Creating a view template that allows you to view your model lines in one view and apply them to another view is the only way to appear them.





Remember : without the difficult times in your LIFE, you wouldn't be who you are today. Be grateful for the good and the bad. ANGER doesn't solve anything. It builds nothing, but it can destroy everything...
Please mark this response as "Accept as Solution" if it answers your question. Kudos gladly accepted.
Nachricht 12 von 13
L.Maas
als Antwort auf: AidanHawkins

The message means that particular (sub)category is hidden somehow. This could be your VG settings, also check if filters are active that might have hidden things.
To check you also can create a new view and see if they are visible there

Louis

EESignature

Please mention Revit version, especially when uploading Revit files.

Nachricht 13 von 13
AidanHawkins
als Antwort auf: L.Maas

They were on an invisible workset.. all fixed now
