How can I add column top and bottom level numbers (or level heights) to column tags?

19 ANTWORTEN 19
GELÖST
Antworten
Nachricht 1 von 20
endes4455
1287 Aufrufe, 19 Antworten

How can I add column top and bottom level numbers (or level heights) to column tags?

I am trying to add column top and bottom level numbers or level heights to the column tags.



When I edit Column Tag Family and then edit label, there is no parameter related to column top and bottom levels to add to the tag.



I defined some shared parameters, but the problem is that I select parameters from some lists. But those lists do not include column top and bottom levels. Why isn't there such a parameter, it is one of the basics.

19 ANTWORTEN 19
Nachricht 2 von 20
barthbradley
als Antwort auf: endes4455

TB Elev2.png

Nachricht 3 von 20
endes4455
als Antwort auf: barthbradley

Thank you for your answer but spot elevation is dimensioning not tag and working only at site level. It doesn't work for level 1 and level 2 columns.



Isn't there a way to do this?





Nachricht 4 von 20
barthbradley
als Antwort auf: endes4455

Not quite sure what you are going on about.



Column Spot Elev.png

Nachricht 5 von 20
barthbradley
als Antwort auf: endes4455

Column Spot Elev2.png

Nachricht 6 von 20
barthbradley
als Antwort auf: endes4455

Column Spot Elev3.png

Nachricht 7 von 20
barthbradley
als Antwort auf: endes4455

Maybe this is what you are after?



Column Spot Elev4.png





Nachricht 8 von 20
endes4455
als Antwort auf: barthbradley

I am trying to do what you have shown me also on plan layouts of Level 1 and Level 2:


But spot elevation is not put on plan elevations.

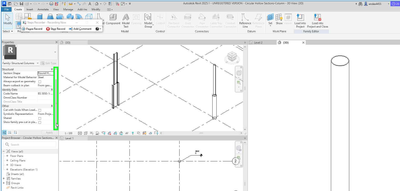

I tried to achieve this by tags but the only information I could fetch into a tag was column length, section heigh etc, not column bottom and top levels. It is below:






Since this is Building Information Modelling, and I have already entered this information, I want to fetch it and do this, automatically. I don't want to write manual information on the plans such as "above" or "below" next to a column. This is time consuming and may be erroneous.





Nachricht 9 von 20
barthbradley
als Antwort auf: endes4455

Just post your Project File here.

Nachricht 10 von 20
endes4455
als Antwort auf: endes4455

Hi,

I am attaching my file, I defined different shared parameters but couldn't manage to use them.



Thanks.



Nachricht 11 von 20
barthbradley
als Antwort auf: endes4455
Nachricht 12 von 20
endes4455
als Antwort auf: endes4455

You used my file I assume, but how did you do this?

It doesn't allow me to put spot elevation in Level 1 or 2. My cursor shows a sign, I couldn't capture it with print screen so I used microsoft step capture. Quality is low but you can see what I see below:








Nachricht 13 von 20
barthbradley
als Antwort auf: endes4455

Go back to message #5.

Nachricht 14 von 20
endes4455
als Antwort auf: endes4455

Thank you very much for your answer. I had unchecked it before. Now I checked It came back. Either I couldn't save or not loaded into project. Now I am able to put spot elevations on Level 1. But this time I cannot put it to Level 2 although pre cut is unchecked. Is there another thing I am missing?













Nachricht 15 von 20
admaecc211151
als Antwort auf: endes4455

You could create a shared parameter of length, and set it to the elevation of start Level and end Level by other way like Addin or Dynamo.

And then show the start Level elevation+Base Offset for the start elevation,

and the end Level elevation+Top Offset for the end elevation in the Column Tag.

*In Tag Family, you should add target's shared parameter in Label instead of in family type.




Nachricht 16 von 20
endes4455
als Antwort auf: endes4455

Thank you for your answer but for a simple height I don't want to use APIs. If spot elevation was worked for other elevations too, it would be enough.

Nachricht 17 von 20
barthbradley
als Antwort auf: endes4455


@endes4455 wrote:

But this time I cannot put it to Level 2 although pre cut is unchecked. Is there another thing I am missing?






I don't know why you are having so much trouble.  I had none.  Now, I did have to use the TAB-Select method since the Level 2 Column overlaps the Level 1 Column. Try pressing the TAB Key.



Out of curiosity, why are you showing Level 1 Columns (and related information) in Level 2 Plan View? It's terribly confusing. More so, if you aren't privy to what the View Range settings are.

Nachricht 18 von 20
endes4455
als Antwort auf: endes4455

What I want to show on LVL2 is the columns sitting on LVL2 and not continuous below as "above" or as a height range. When I click spot elevation my cursor is a stop sign on LVL 2 everywhere on the plan; doesn't select anything.



May be it is because this is my 10th day on trial and I did something I don't know. I will uninstall and install the software again. It should fix any weird settings.

Nachricht 19 von 20
barthbradley
als Antwort auf: endes4455

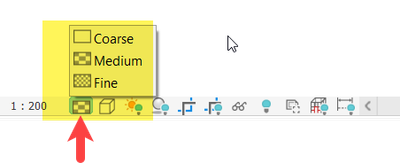

Is the View Detail Level set to Medium or Fine?  I also went over this above.  Have you read all my replies?





View Detail Level.png

Nachricht 20 von 20
endes4455
als Antwort auf: endes4455

I am sorry Barth, I missed that red text. This solves all the problems.



Thank you very much for your help.
