Help with Roof Cleanup!

1 ANTWORT 1
Antworten
Nachricht 1 von 2
ecano1FAHTG
166 Aufrufe, 1 Antwort

Help with Roof Cleanup!

Hi Everyone!

I'm currently struggling with cleaning up some complex roof geometry. I was planning on using the roof opening by face tool to be able to clean up the roof underneath where it intersects with another roof.

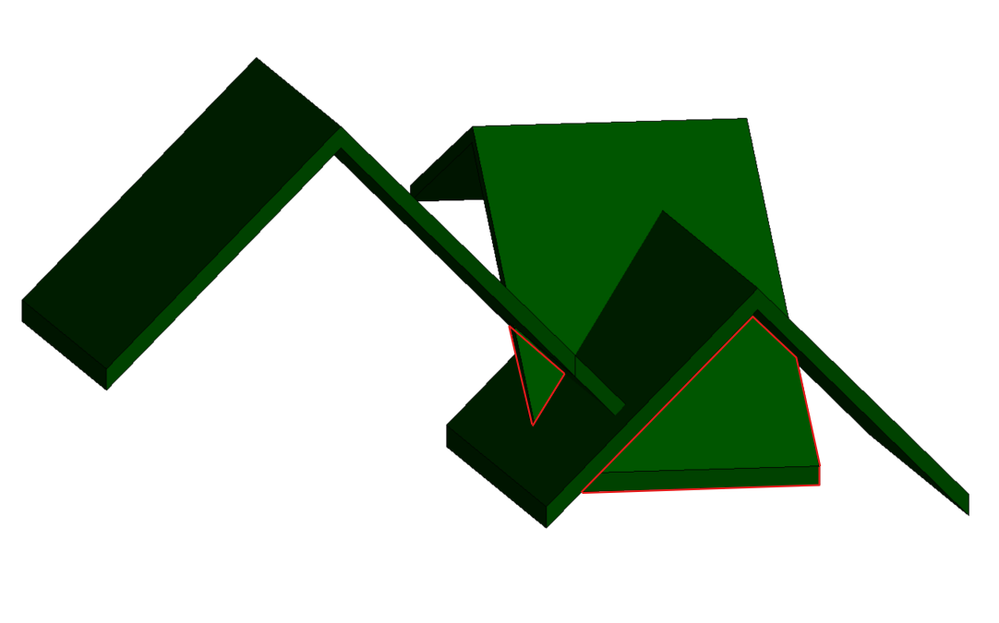

In the photos below, I have outlined the area I am trying to get rid of, and put arrows along the edge I would like to be able to select. When I'm using the roof opening tool, I can't seem to select the spot where these two roofs intersect. I know I could use the cut tool to get a cut along that line, but then the remaining roof is left underneath still. Any advice would be very useful! Thank you in advance.





Screenshot 2024-06-27 152001.pngScreenshot 2024-06-27 151833.pngScreenshot 2024-06-27 151534.png

Beschriftungen (2)
1 ANTWORT 1
Nachricht 2 von 2
barthbradley
als Antwort auf: ecano1FAHTG

Join them all together and then cut the protruding portion with an In-Place Modeled Void Extrusion.
