Help organic roof structure

13 ANTWORTEN 13
GELÖST
Antworten
Nachricht 1 von 14
admeza
1020 Aufrufe, 13 Antworten

Help organic roof structure

Hi! I did this shape in Rhino and now I'm trying to do it in Revit with Conceptual Mass, but I can't, mostly because of the holes on it. I tried to do it in a single line, leaving small holes between them, but look what it creates. At the end, I want to have the mass in Revit to do then the tridimentional truss.



Captura de pantalla 2022-10-15 014557.jpgWhat I want to createWhat I want to create

Captura de pantalla 2022-10-15 014543.jpg

What it creates with the dots that I have thereWhat it creates with the dots that I have thereI tried to do this with Bezier SplineI tried to do this with Bezier Spline

13 ANTWORTEN 13
Nachricht 2 von 14
ToanDN
als Antwort auf: admeza

Model without holes then use voids to cut the form.

Nachricht 3 von 14
admeza
als Antwort auf: ToanDN

I tried that, but it didn't work because I can't make a hole inside of the mass. Captura de pantalla 2022-10-15 022525.jpg

Captura de pantalla 2022-10-15 022542.jpg

Nachricht 4 von 14
ToanDN
als Antwort auf: admeza

Not sure if I understand. Why can't you make the voids and the surface in the same mass so you can cut?  Do you want to share the file?

Nachricht 5 von 14
admeza
als Antwort auf: ToanDN

Yes, here it is. I'm new in Revit, so if you know like an option or how do I do the voids, I would aprecciate it.

Nachricht 6 von 14
ToanDN
als Antwort auf: admeza

Edit the mass and add void form.



-  draw lines and create solid form first so you can size it more easily









- Then change it to void and it will cut the surface



















Nachricht 7 von 14
admeza
als Antwort auf: ToanDN

Thanks for the help, I did it and it worked. But now, the other problem :grinsendes_Gesicht_mit_Schweißperlen: of the tridimentional truss. I did a family for the structure of the panel with the template Metric Curtain Panel Pattern Based, and I load it in the project days ago to test it. And now when I try to load it in the project that I created, it appears an error. I tried to save it with another name and also created a new one from scratch.Captura de pantalla 2022-10-15 134402.jpgerror3.jpgError.jpg

Nachricht 8 von 14
ToanDN
als Antwort auf: admeza

Where is the family?

Nachricht 9 von 14
admeza
als Antwort auf: ToanDN

The file? Here it is.

Nachricht 10 von 14
ToanDN
als Antwort auf: admeza

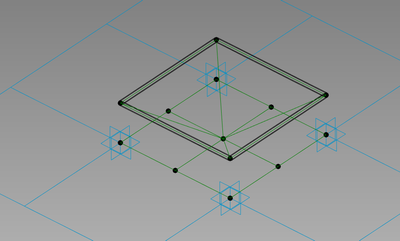

You can test the family flex by changing the  tile spacing.  Here shows some points are not hosted/constrained properly.






I fixed the points and skeleton frame for you.  You can recreate the rods from them.








Nachricht 11 von 14
admeza
als Antwort auf: ToanDN

The one I did at the beggining when it worked, but now doesn'tThe one I did at the beggining when it worked, but now doesn't

Complete it the one you sentComplete it the one you sent

I completed the one you sent, but it keeps appearing the error. And also tried with the one that I did first, but it doesn't work either.

Nachricht 12 von 14
ToanDN
als Antwort auf: admeza

I have fixed your curtain pattern family again but I would recommend to use an adaptive generic family with repeater.  It gives a better result.  Both are attached and the image below is using the adaptive family.






Nachricht 13 von 14
admeza
als Antwort auf: ToanDN

OMG! I tried to do it with an adaptative family too, doubling the mass with a subdivision, placing the family and then press repeating, but it hasn't gave me a result. Would you mind telling me step by step how did you do it?

Nachricht 14 von 14
admeza
als Antwort auf: admeza

This is the file I'm using.
