Heavy Timber Beam Connections

10 ANTWORTEN 10
GELÖST
Antworten
Nachricht 1 von 11
leahmbell
1576 Aufrufe, 10 Antworten

Heavy Timber Beam Connections

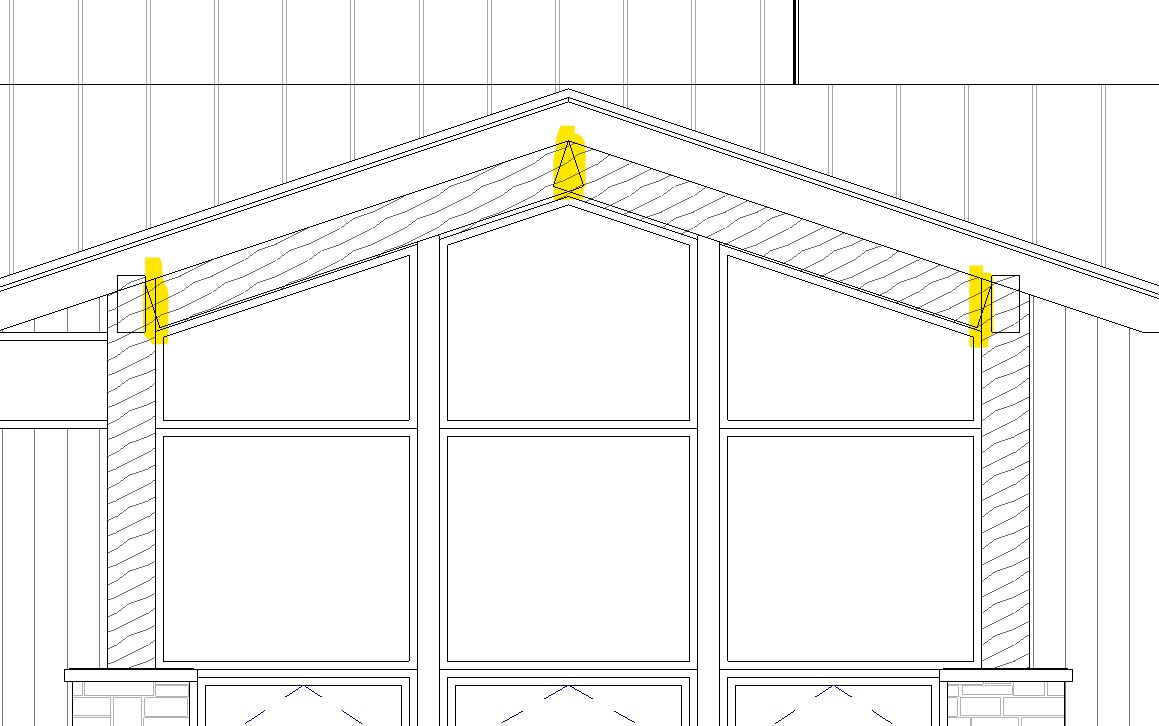

Is there a way to clean up the joins between the beams I highlighted? They are actual structural beams and columns.

Tags (1)
10 ANTWORTEN 10
Nachricht 2 von 11
ToanDN
als Antwort auf: leahmbell

Yes. Use Cope tool and set Coping Distance to 0 from properties.

Nachricht 3 von 11
leahmbell
als Antwort auf: ToanDN

I think I am missing something. When I cope the beams it cuts like this. When I adjust the coping to 0" I get an error saying it can't cut the beams. I am looking to get a simple vertical miter between the 2 beams.

Nachricht 4 von 11
barthbradley
als Antwort auf: leahmbell

Draw a Ref. Plane at the apex, stretch the Beams to overlap and then use Cut Geometry tool to cut each Beam against the Ref. Plane.




Before Cut:




Nachricht 5 von 11
ToanDN
als Antwort auf: leahmbell


@leahmbell wrote:

I think I am missing something. When I cope the beams it cuts like this. When I adjust the coping to 0" I get an error saying it can't cut the beams. I am looking to get a simple vertical miter between the 2 beams.


You can play with the coping arrows to get the final result.






https://knowledge.autodesk.com/community/screencast/00e97217-5857-46f3-840e-38f3419f5425



Nachricht 6 von 11
samuelzergling
als Antwort auf: leahmbell

I usually just use the join tool and those lines will disappear. If it doesn't look good in section then I use the fill region tool and hide the model.

Nachricht 7 von 11
ToanDN
als Antwort auf: leahmbell


@leahmbell wrote:

I think I am missing something. When I cope the beams it cuts like this. When I adjust the coping to 0" I get an error saying it can't cut the beams. I am looking to get a simple vertical miter between the 2 beams.


Is this not what you are after?




Nachricht 8 von 11
leahmbell
als Antwort auf: ToanDN

That is exactly what I am after, but I am not getting that result/ options when I do it. I think it's because the person who created this created those beams as a part of a beam system. I have disassociated the beams with the system but it still isn't working. I am going to try to recreate it as just a beam and see if I can get it to work that way.

Nachricht 9 von 11
barthbradley
als Antwort auf: leahmbell

Beams have to be co-planar to do what @ToanDN did.

Nachricht 10 von 11
leahmbell
als Antwort auf: leahmbell

So the issue was because the beam was created as apart of a beam system. As soon as I recreated the beam as a single member it mitered as expected. Thanks for the help!

Nachricht 11 von 11
karelvinckier
als Antwort auf: leahmbell

Have a look at www.hsbcad.com
