Have railing baluster post issue

22 ANTWORTEN 22
GELÖST
Antworten
Nachricht 1 von 23
jpkottai
1223 Aufrufe, 22 Antworten

Have railing baluster post issue

Hi Every one hope you all of you doing well . i have issue with the railing baluster post actualy i need to cut the railing steel L angle post which having a clash with steel stringer  and have to add pas plate also. My case is i have stair in structural model and railing is in arch model both are in different file  but i have to do cut at that correct place where its getting clash with stringer kindly help me to solve this. i have attached pic below no. 1 indicates what am having issue No.2 indicate i have to do same as like this detail.

Thank you advance

NO.1NO.1

No.2No.2



Beschriftungen (1)
22 ANTWORTEN 22
Nachricht 2 von 23
syman2000
als Antwort auf: jpkottai

You may want to edit the baluster family and add void to cut the bottom portion






Check out my Revit youtube channel - https://www.youtube.com/user/scourdx
Nachricht 3 von 23
barthbradley
als Antwort auf: jpkottai

Is the Railing actually hosted to the Supports? If so, does adjusting the Railing's "Offset from Path" fix?

Nachricht 4 von 23
barthbradley
als Antwort auf: jpkottai

Ah! I see now what you are up against. What about a "reference" Support in the Arch to "cut" and Railing and then hide this reference in the View(s)?



Ref Stair 1.pngRef Stair 2.pngRef Stair 3.png

Nachricht 5 von 23
jpkottai
als Antwort auf: barthbradley

shall i send u RVT file
could u check it
Nachricht 6 von 23
barthbradley
als Antwort auf: jpkottai


@jpkottai wrote:
shall i send u RVT file
could u check it



Can't hurt, can it?  Send away.

Nachricht 7 von 23
jpkottai
als Antwort auf: barthbradley

COULD YOU PLEASE CHECK IT  BELOW ATTACHED FILE I HAVE TO CUT

Nachricht 8 von 23
jpkottai
als Antwort auf: barthbradley

THANKS LOT I HAVE ATTACHED BELOW THAT RVT FILE KINDLY CHECK AND LET ME KNOW
Nachricht 9 von 23
jpkottai
als Antwort auf: barthbradley


i got ur point here but  i did this stringer support by str framing  it not attaching thats what i have to cut excess portion. so if u know plz let me know

thank you  in advance

Nachricht 10 von 23
ToanDN
als Antwort auf: jpkottai

Balusters only attach to stringers, not structural framing.  If you need them to cut at an angle then copy paste the stair aligned in place, then add stringers to the copy stair and host railing on that stair.  Then you can hide that stair and you can have the railing.

Nachricht 11 von 23
jpkottai
als Antwort auf: ToanDN

actually i did  that frame here structural framing  bcz of BOQ if i can add in stringer its not connecting properly at corner area which is meeting point  could  please u check above i have attached file

Nachricht 12 von 23
ToanDN
als Antwort auf: jpkottai

Read my post again. I did not ask you to not use structural framing.

Worst case, you can remove all balusters from the railing and place them manually as structural column or structural framing, then you can trim them with reference planes.

Nachricht 13 von 23
jpkottai
als Antwort auf: ToanDN

i can agree yours i need to cut there to avoid clashes to arch vs str  in this case arch file has stair STR file has framing even if i add the stringer there how can i avoid clashes there  if u know it plz let me know

Nachricht 14 von 23
jpkottai
als Antwort auf: jpkottai

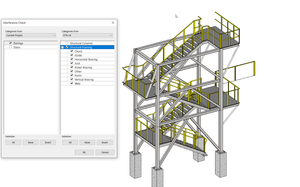

 see like this clashes i have to solve it let me know have any other way to avoid clashes

the client need boq for structural framing too

Nachricht 15 von 23
barthbradley
als Antwort auf: jpkottai

I don't understand the design intent, but my understanding was that you wanted to cut the balusters at an angle at the stairs. If so, I'm doubly confounded by all the base offsets built into the Railing Types' Baluster Patterns. I'm thinking they were your attempts to find a workaround.



Try this workaround. No base offsets and balusters are constrained at top and bottom to "reference" rails defined under Rail Structure.



Railing Baluster Base Offset 1.pngRailing Baluster Base Offset 2.png

Nachricht 16 von 23
barthbradley
als Antwort auf: jpkottai

one more...



play with these height values to control where cut is made (essentially the baluster "offset"):



Railing Baluster Base Offset 3.png

Nachricht 17 von 23
jpkottai
als Antwort auf: barthbradley

yeah thanks for ur effort really thank you so much and did u c that above post i have to avoid clashes with STR and ARCH



Nachricht 18 von 23
barthbradley
als Antwort auf: jpkottai

Get rid of the kickers and there's no clashes.  So, the issue is not the balusters.  My revised railing works fine.













Nachricht 19 von 23
barthbradley
als Antwort auf: jpkottai

Change the Kicker Plate Height and edit the sketch to shorten it slightly.








Then figure out how to resolve this one remaining clash:








Nachricht 20 von 23
jpkottai
als Antwort auf: barthbradley

can u plz send me this revit file bcz which sent one is not opening am using RVT 2017
