Handrail Problems

11 ANTWORTEN 11
GELÖST
Antworten
Nachricht 1 von 12
RevitDriver
602 Aufrufe, 11 Antworten

Handrail Problems

I am using a handrail I found in the "Railing Samples"  in one of my own projects. I am having problems with the returns at the top and the bottom, also the supports are not connected to the handrail. I am attaching a few photos.

Section View.png


11 ANTWORTEN 11
Nachricht 2 von 12
barthbradley
als Antwort auf: RevitDriver

Post the RVT.

Nachricht 3 von 12
RevitDriver
als Antwort auf: barthbradley

Are you asking for my project or for the Revit Family for the handrail?

Nachricht 4 von 12
barthbradley
als Antwort auf: RevitDriver

Project.

Nachricht 5 von 12
RevitDriver
als Antwort auf: barthbradley

Here this is. I am using Revit 2019

Nachricht 6 von 12
syman2000
als Antwort auf: RevitDriver

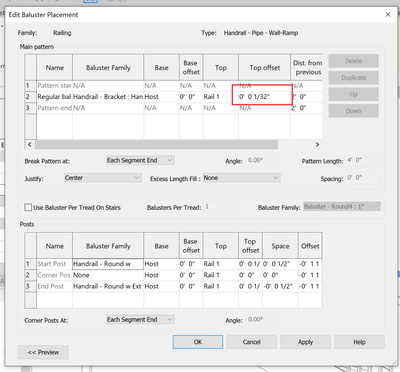

I change this value and it seems to line up. If the value is zero, it is offset by 1 1/2". So something is going on inside that start & end balusters











Check out my Revit youtube channel - https://www.youtube.com/user/scourdx
Nachricht 7 von 12
ennujozlagam
als Antwort auf: RevitDriver

try to extend 300mm or more ?










Remember : without the difficult times in your LIFE, you wouldn't be who you are today. Be grateful for the good and the bad. ANGER doesn't solve anything. It builds nothing, but it can destroy everything...
Please mark this response as "Accept as Solution" if it answers your question. Kudos gladly accepted.
Nachricht 8 von 12
RevitDriver
als Antwort auf: syman2000

Thank you, that works for me also. Now, how about these supports that don't hit the handrail.Screenshot 2023-07-19 192805.png

Nachricht 9 von 12
syman2000
als Antwort auf: RevitDriver

Just add top offset a small value and it should placed them at the right height.






Check out my Revit youtube channel - https://www.youtube.com/user/scourdx
Nachricht 10 von 12
RevitDriver
als Antwort auf: syman2000

That did work, Thank You.

Nachricht 11 von 12
barthbradley
als Antwort auf: RevitDriver


@RevitDriver wrote:

That did work, Thank You.




Looks like someone is deserving of a solution credit. Know what I mean?  :zwinkerndes_Gesicht:





Nachricht 12 von 12
RevitDriver
als Antwort auf: barthbradley

Sure Do!
