Gross Building Area NOT WORKING

chiomaun94
Participant
Participant

Hi, I'm trying to create a gross building area plan and nothing is working. No area was calculated when I tried to do it automatically, so then I tried to do it manually but again nothing happened so I couldn't manually select the external walls either. I've checked visibility graphics, constraints, still nothing. Tried another thing and the entire floor plan disappeared. Tried YET AGAIN and now, for whatever reason, I can no longer select level 1 as an option. I'm extremely frustrated. Everything thing Revit feels unnecessarily complicated.



GROSS BUILDING AREA.png

0 Likes
904 Views
5 Replies
Replies (5)
Message 2 of 6

ToanDN
Consultant
Consultant

Uncheck the box at the bottom of your screenshot.

0 Likes
Message 3 of 6

chiomaun94
Participant
Participant

I unchecked the box and that helped with getting my levels back but there's still no area being calculated.



Screenshot 2022-05-27 014145.png

0 Likes
Message 4 of 6

ToanDN
Consultant
Consultant

Place Area inside the area boundary.

0 Likes
Message 5 of 6

chiomaun94
Participant
Participant

I'm still not seeing anything happen...

I've attached a copy of my file



0 Likes
Message 6 of 6

ToanDN
Consultant
Consultant

Start fresh to learn:



- Delete all these






- Create New Gross Building Area Plan for Level 1

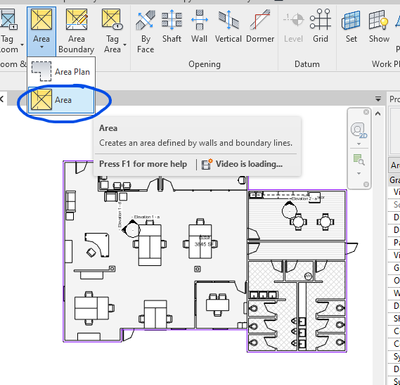

- If you delete the Area, you can add it again:
