Is it possible to keep the grid head text label aligned with the direction of the grid line? By default the text is aligned with the view.

0 Likes
1,383 Views
8 Replies
Replies (8)
Message 2 of 9

barthbradley
Consultant
Consultant

Why not create a Grid Head to do that?

0 Likes
Message 3 of 9

cees
Contributor
Contributor

Tried to. Text in bulb won't however rotate with gridline. It stays upright.

0 Likes
Message 4 of 9

barthbradley
Consultant
Consultant

@cees wrote:

Tried to. Text in bulb won't however rotate with gridline. It stays upright.




You must be doing something wrong then. Either that, or I misunderstood you.

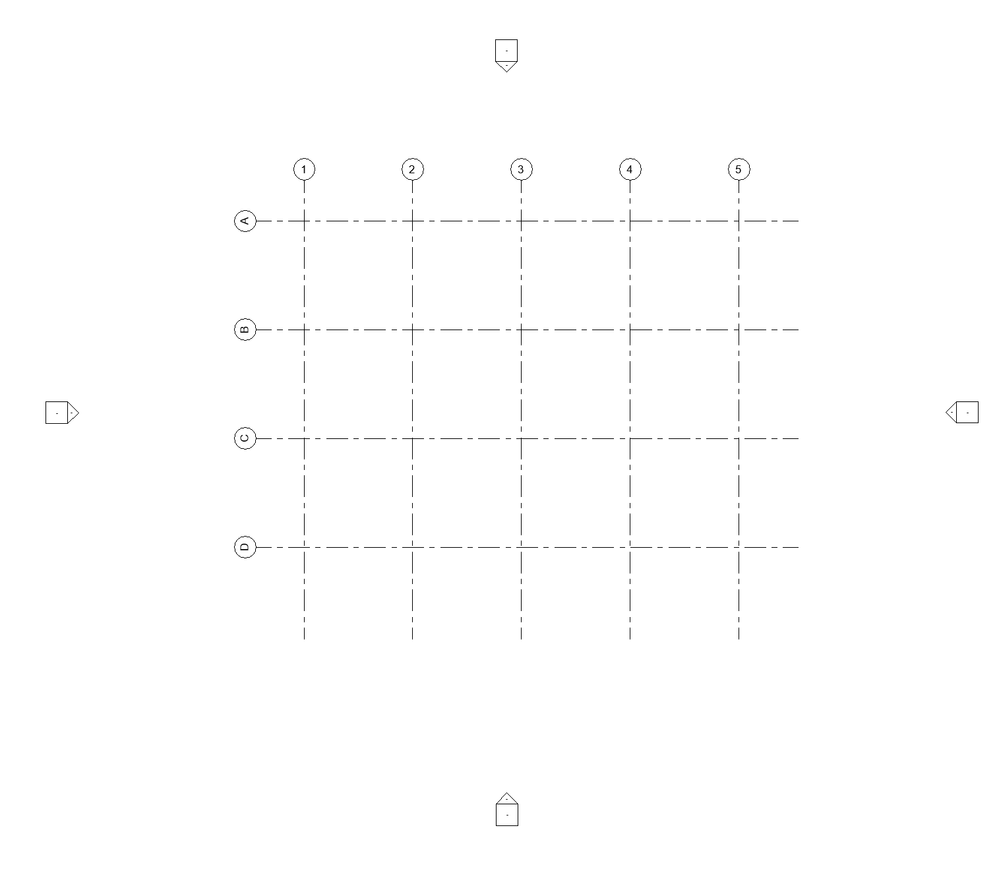

Is this what you want?






0 Likes
Message 5 of 9

cees
Contributor
Contributor

Yes. Automatically in any direction, not only horizontally or vertically. So also when a View is rotated or a rotated Scope Box is being used the text should face in the direction of the grid line.

0 Likes
Message 6 of 9

barthbradley
Consultant
Consultant

Revit can't do that automatically.  You need to create different TYPES.



Keep in mind that "Heads" cannot use INSTANCE PARAMETERS. This is essentially what they would need to have to be able do what you want them to do.

Message 7 of 9

cees
Contributor
Contributor

That's what I thought. Thanks anyway.

0 Likes
Message 8 of 9

barthbradley
Consultant
Consultant

You're welcome anyways



So, what are you going to do?

0 Likes
Message 9 of 9

patrick.cc01
Participant
Participant

Hi, how can i make the the text locked on center of the bulb?Grid Line text bulb blues.JPG
