Glazed Sloped Roof

Hi
I created a sloped roof with an opening and a roof inside I changed its type to sloped glazing within the same slope value. The problem I have that I can't add grids and mullions not from the type and nor by adding it manually. How to manage this problem, please?

Regards

6 ANTWORTEN 6
Nachricht 2 von 7
constantin.stroescu
als Antwort auf: zs-17

Use Edit Footprint instead of Opening>Shaft and then you'll be abele to create the second roof

Image 2.png



Image 3.png

Constantin Stroescu

EESignature

Nachricht 3 von 7
zs-17
als Antwort auf: constantin.stroescu

I still have a problem The cut will vertical when I need it as by face. The frame will be inside the roof. Another problem is that the frame is segmented and not as an arc to follow roof lines. Is there a way to fix it?

Nachricht 4 von 7
barthbradley
als Antwort auf: zs-17

3D Beams will follow the curves.

Nachricht 5 von 7
zs-17
als Antwort auf: barthbradley

I don't know how to do it

Nachricht 6 von 7
syman2000
als Antwort auf: zs-17

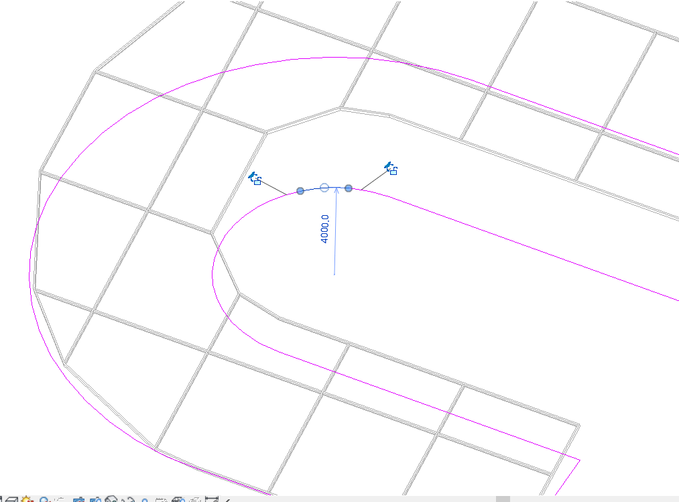

If you want to make the mullion curve, you have create arc segment. Use the break tool to break the arc into many parts.



create segment.png



When you apply mullion, it will follow segment and create much smoother curve.




Check out my Revit youtube channel - https://www.youtube.com/user/scourdx
Nachricht 7 von 7
zs-17
als Antwort auf: syman2000

Yes, it solves the segmented mullion. I still looking for the opening
