Generic model's lines are missing in legend

1 ANTWORT 1
GELÖST
Antworten
Nachricht 1 von 2
taejooY875Z
87 Aufrufe, 1 Antwort

Generic model's lines are missing in legend

Hi, I am working on door family and having trouble on legend view.

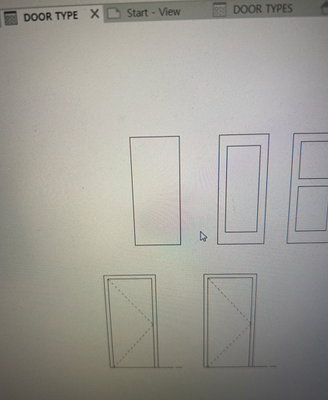

Nested doors are generic model and loaded into a door family and project file. But the swing indication lines are missing on legend.


But once I hover over it, the lines are there but I don't know how to show it.




On door family (generic model), I created subcategory and it checked on visibility of project file.



Does anyone know how to fix it?









Tags (1)
1 ANTWORT 1
Nachricht 2 von 2
ToanDN
als Antwort auf: taejooY875Z

If they are model lines then you need to draw them on both sides of the panel.
