Generic Model Pattern based family work plan selection

4 ANTWORTEN 4
Antworten
Nachricht 1 von 5
shihas.pms24
329 Aufrufe, 4 Antworten

Generic Model Pattern based family work plan selection

Hi Dears,

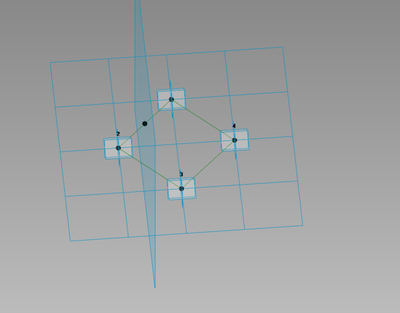

The attached image below is a Generic Model Pattern based family. The grid pattern is Rhomboid. i want to create a circle or square profile through out the green reference line, but before draw, when i try to set the work plan pressing with tab, i cannot pick the plane parallel with green line. its always align or parallel with the blue grid line. how i can pick like that.

The highlighted blue colored work plan i want parallel with 1 & 4 reference plane.



Thanks....






4 ANTWORTEN 4
Nachricht 2 von 5
ToanDN
als Antwort auf: shihas.pms24

Select the point hosting on one of the green line and set it's work planes to be visible via properties. When you draw the profile, pick work plane and pick the plane shown at that point.

Nachricht 3 von 5
shihas.pms24
als Antwort auf: ToanDN

This is my problem , i cannot pick the the work plane of the specific point on green line. the work plane showing only parallel with blue colored grid line.

Nachricht 4 von 5
ToanDN
als Antwort auf: shihas.pms24

Use TAB on the point to cycle through the work planes.

Nachricht 5 von 5
Mike.FORM
als Antwort auf: shihas.pms24

The point does not look like it is hosted on the reference line. Points that are hosted on lines appear smaller. Points hosted to planes are larger. Select your point and click "pick new host" from the ribbon. Then host it to the ref line.
