Furniture showing up in room below on the furniture schedule

15 ANTWORTEN 15
Antworten
Nachricht 1 von 16
Anonymous
1785 Aufrufe, 15 Antworten

Furniture showing up in room below on the furniture schedule

I have furniture placed on my second floor that is showing up in the furniture schedule as on the first floor. I believe the issue is with the furniture itself because this is only happening with the items selected from one manufacturer. In the photo you can see there is a chair placed in the dining room on the second level but the schedule has it under the first level. I have looked at sections and the rooms aren't penetrating into other floors. I've tried to look at the furniture model and it wont allow me to edit anything. Is there anything I can do to fix this?help.JPG

Beschriftungen (1)
15 ANTWORTEN 15
Nachricht 2 von 16
barthbradley
als Antwort auf: Anonymous

Sure there's a way to fix it. Post the file and we'll explain how.

Nachricht 3 von 16
Anonymous
als Antwort auf: barthbradley

I am not able to upload the project document, but here is the furniture block.

Nachricht 4 von 16
syman2000
als Antwort auf: Anonymous

Your furniture is an adaptive and it will go haywire depending on which level you place it at. If you choose face, it will just adapt to that surface but you are the mercy of whatever level it is set to. I usually use Place on workplane so it will read the level in the schedule properly.






furniture schedule.png

Check out my Revit youtube channel - https://www.youtube.com/user/scourdx
Nachricht 5 von 16
barthbradley
als Antwort auf: Anonymous

I can get you there in a round-about way if you are interested.



1, Export Geometry to DWG.

2. Open DWG and place the seat and frame geometries onto Layers, and then Save the DWG.

3. Import DWG into Revit Family Template. Save  the Family.

4. Insert the Family to Revit and place on Levels.



The Graphic and Appearance Properties can be changed via the Imported Categories Tab.

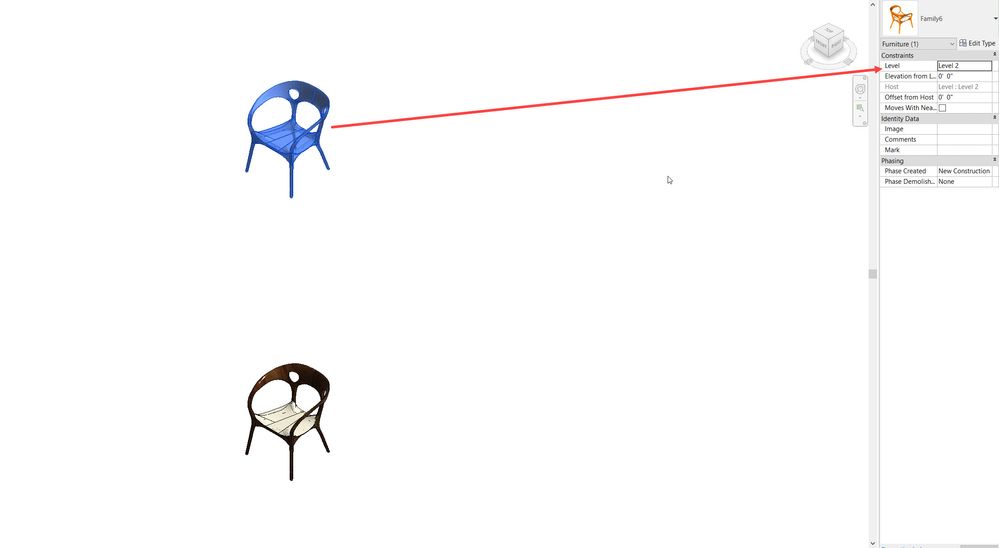

Chair.jpgChair 2.jpgChair 3.jpg

Nachricht 6 von 16
barthbradley
als Antwort auf: barthbradley

Chair 4.jpg

Nachricht 7 von 16
barthbradley
als Antwort auf: barthbradley

Chair 5.jpg

Nachricht 8 von 16
Anonymous
als Antwort auf: syman2000

I tried placing it on work plane and it didn't work. And I made sure the placement plane was correct.

Nachricht 9 von 16
Anonymous
als Antwort auf: barthbradley

I couldn't figure out how to do what you did. I'm not very good at this stuff. I'm a student. Thank you though.

Nachricht 10 von 16
barthbradley
als Antwort auf: Anonymous

A student? Well, welcome to Revit and our Forum!



Are you learning AutoCAD as well. You'll need AutoCAD software, as well as some very basic knowledge of AutoCAD to do what I did.  If you do, then I'll be happy to walk you through a few easy steps to reproduce what I did.



Let me know.







Nachricht 11 von 16
syman2000
als Antwort auf: Anonymous

When I placed an object, it should give you which placement you want to placed in. This is should help you set which level you want your furniture to be at. If all else failed, try Brad's method.



level pick.png

Check out my Revit youtube channel - https://www.youtube.com/user/scourdx
Nachricht 12 von 16
barthbradley
als Antwort auf: syman2000



Interesting. I cannot get the OP's Family to report the Level it is placed on (always indicates Level 1)  - but if I activate the Room Calculation Point in the Family, I can report the Room/Level.




Nachricht 13 von 16
Mohamed-Nassar
als Antwort auf: Anonymous

May Underlay cause this problem

----------------------------------------------------------------------------------
If the above reply answers your question; Please mark it with ACCEPT SOLUTION
----------------------------------------------------------------------------------

Mohamed Nassar , ACP, Autodesk Ambassador Gold
BIM Support / Structure Modeler
Nachricht 14 von 16
lim.wendy
als Antwort auf: Anonymous

Hi @Anonymous ,



Welcome and thank you for reaching out in the Autodesk Forums. This is a great platform where you and the rest of the community can benefit. Looks like our users have provided you with some great suggestions. If the suggestions helped you, please hit the "Accept Solution" button, as it helps makes the solution easier to find for others who might have the same issue. Knowing which topics are solved or not can also help our many users find the questions that still need to be answered. It’s also a great way to say thank you and give recognition to whoever helped you. :leicht_lächelndes_Gesicht:


Let us know how things are going!



We're delighted to have you as part of the Autodesk community and hope you'll come back often to benefit from our Forums, Training Videos, User Groups and other resources.



Wendy Lim

Data Nerd | Community Advocate | AEC Industry


facebook twitter twitter blogs pm


Join the new online Rail Community


Rails Summit




Nachricht 15 von 16
Anonymous
als Antwort auf: Anonymous

I tried the autocad method and the others suggested, but its still not working. I think I need to bite the bullet and just replace the messed up furniture. Thank you for all your responses.

Nachricht 16 von 16
syman2000
als Antwort auf: Anonymous

No problem. Adaptive is very unpredictable. Here is the alternative you can use.

Check out my Revit youtube channel - https://www.youtube.com/user/scourdx
