Floor element and Wall Element Joining Condition

1 ANTWORT 1
Antworten
Nachricht 1 von 2
castillonvjc
100 Aufrufe, 1 Antwort

Floor element and Wall Element Joining Condition


 Hi! I am wondering if this is a possible in revit? In actual construction, this is typically seen in counters and ledges.

1 ANTWORT 1
Nachricht 2 von 2
vitorbortoncello
als Antwort auf: castillonvjc

Yes, you will need to use a reference plane for the wall and a void for cutting the floor

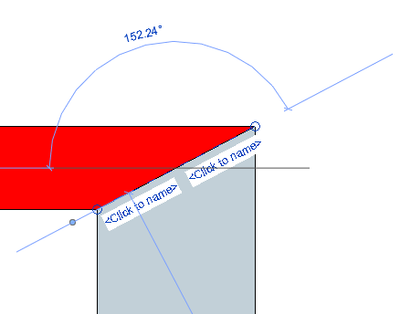

Create the RP in a section view and attach the top of the wall at it:

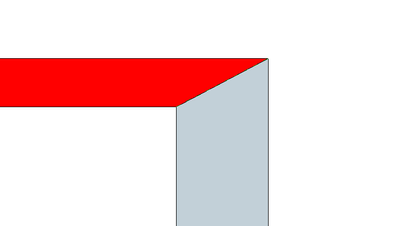

Then create  an extrusion void and use it to cut the floor:






A resposta te ajudou? Não esqueça de curtir e aceitar como solução!
