Fascia on Curved Roof



The curved roof below was created by using "roof by extrusion".  I am getting an error when attempting to attached a fascia board to the face of the roof as seen in the image below:






Is the fascia tool supposed to work on this type of roof?



7 ANTWORTEN 7
Nachricht 2 von 8
ToanDN
als Antwort auf: BigPicture045

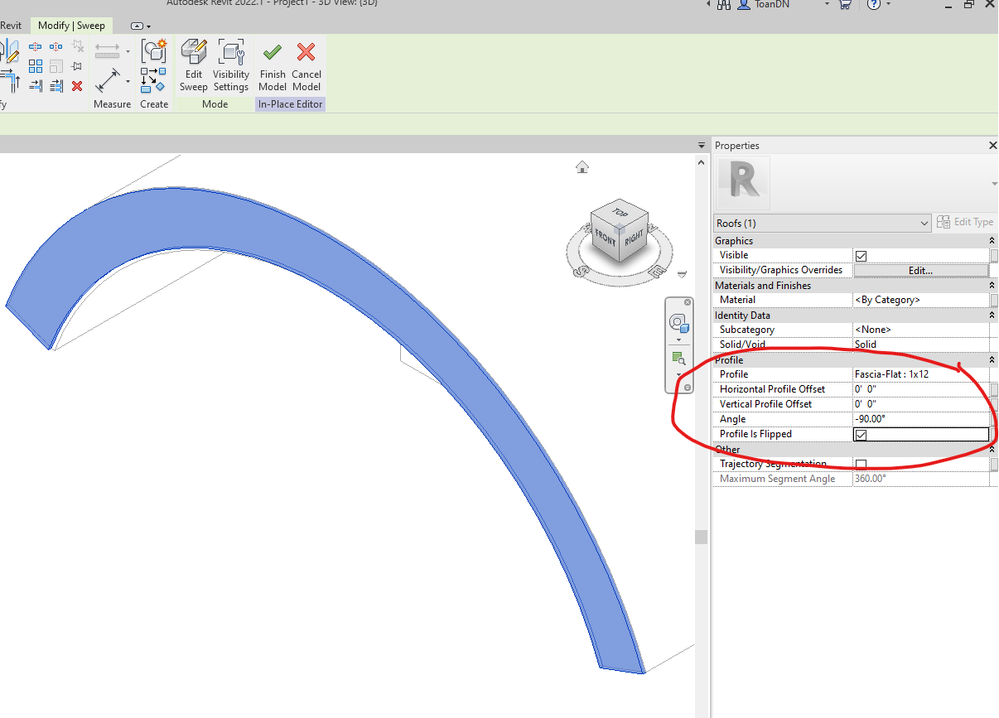

Create an in place sweep using the same fascia profile instead?






Nachricht 3 von 8
barthbradley
als Antwort auf: BigPicture045

No issues here.








Maybe try a Profile Offset?

Nachricht 4 von 8
barthbradley
als Antwort auf: barthbradley

@BigPicture045 : Let us check yours out. Share your RVT.

Nachricht 5 von 8
syman2000
als Antwort auf: BigPicture045

Is the fascia your own custom profile or OOTB profile? If it is custom, check and make sure the lines are closed without overlapping lines or extended lines.

Check out my Revit youtube channel - https://www.youtube.com/user/scourdx
Nachricht 6 von 8
BigPicture045
als Antwort auf: barthbradley

The RVT file is too large to upload on here. Here it is via G Drive:



https://drive.google.com/file/d/1PUz1v2tWofYU_iRH8u-YXurGiyxg4F7S/view?usp=sharing





Nachricht 7 von 8
syman2000
als Antwort auf: BigPicture045

It is an odd behavior. If I shorten the roof, it works.






As well I add flat extension, it will create the arc fascia.








Check out my Revit youtube channel - https://www.youtube.com/user/scourdx
Nachricht 8 von 8
barthbradley
als Antwort auf: BigPicture045

You could just make the Fascia with the Roof by Extrusion method as well.  :zwinkerndes_Gesicht:



....zero out the Fascia Depth and make the Rafter Cut a Plumb Cut. The Roof Fascia works on the Roof by Extrusion then.
